The WP Series emergency LED battens are a reliable, high quality weatherproof luminaire. This IK65 & IK08 rated luminaire is extremely robust and built for outdoor commercial applications. The wide light distribution and colour temperature switch allows you to easily match existing lights. The ideal replacement for surface mounted fluorescent fittings and new fitouts.
Features
- Robust construction
- Stainless steel mounting clips
- Flicker free driver
- Locking screws
- Ceiling or wall mountable
- Frosted diffuser
- Colour temperature selectable
- Maintained emergency batten
- Power selectable
- AS/NZS 2293.3 compliant
- Replaces 2x 36W Fluoro
Applications
- Council Facilities
- Car Parks
- Stairwells
- Parks
- Schools
- Exterior Walls / Ceilings
- Commercial Buildings
Standard Specifications
| Input Voltage: 200 - 240Vac | Rated Input Power: 40W / 32W / 24W / 20W |
| Emergency Power: 3.5W ± 0.5W (Emerg) | Colour Temperature: 3000K - 5000K (*Single CCT / GS) |
| Battery Type: LiFePO4 6.4V 1500mAh | Duration: 3hrs @ 3.5W |
| Lumen Output: 3400 - 4200lm | CRI Rating: CRI>80 (*CRI>85 / GS) |
| SDCM Rating: <6 (*SDCM < 3 /GS) | Beam Angle: 120° |

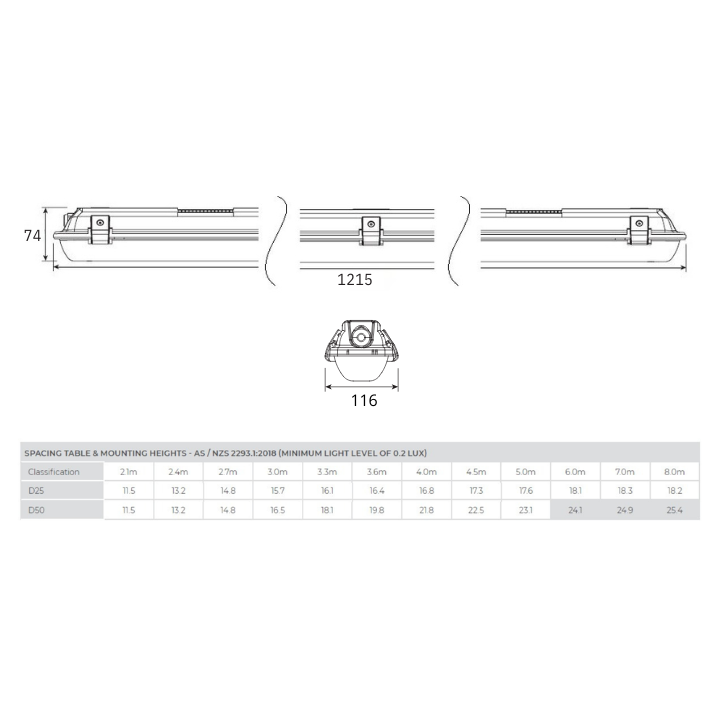

| C0 Classification: D50 | C90 Classification: D25 |
| IP Rating: IP65 | IK Rating: IK08 |
| Fitting Weight: 1.95kg |
Option List
| DALI Driver | /DALI |
| Greenstar Specification* | /GS |
IES Files
| IES WP40GR4KN01 40W 4000K |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| Grey / 3CCT / 1200MM | WPE40GRXKN01 | Stock Item |
| Special order products typically have an 12-14 week lead time. Minimum order qty's may apply. | ||
