DLI Series Low Glare LED Downlight - 25W IC-4 Range

  • Sale

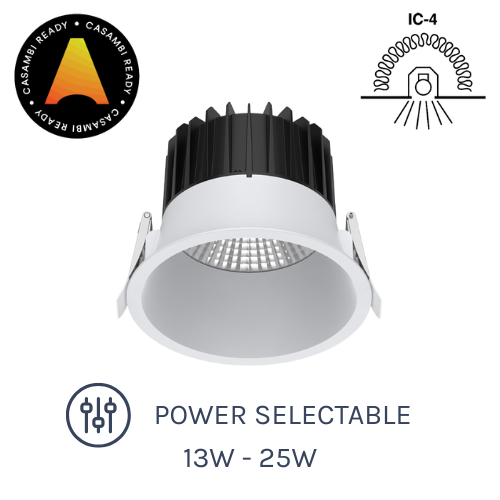

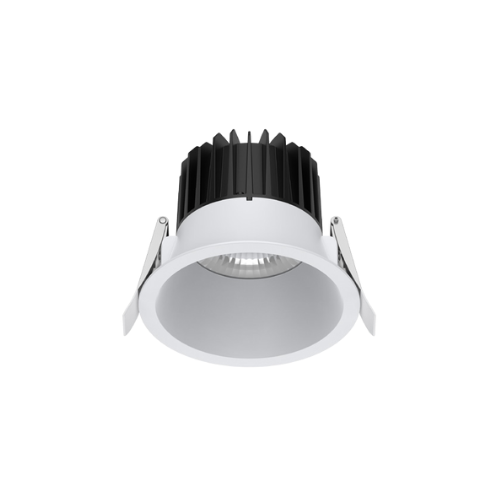

Introducing the DLI Series, Integrated Power’s premium low glare addition to their downlight range. This high spec series offers excellent colour rendition, high quality COB LED chips in a deep reflector housing for excellent low glare results. This series meets IC4 specifications with superior heat dissipation in a diecast aluminium body. They are the perfect choice for commercial lighting projects including offices, galleries, shopping centres and more. Additionally, they are now Casambi Ready offering a plug and play solution to upgrade to Casambi wireless smart controls.

Features

  • High quality COB LED chips
  • High lumen efficiency
  • High colour rendition index
  • Die-cast aluminium body

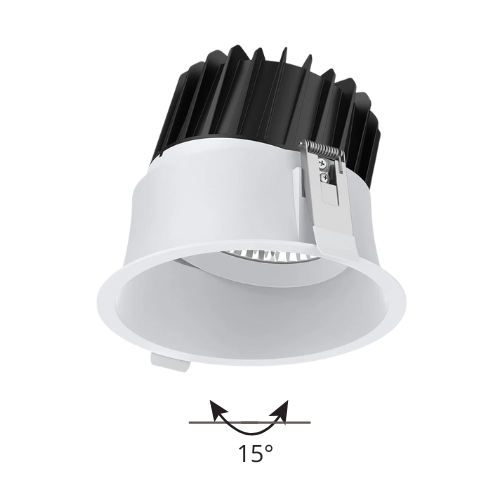

  • Tilt model option available
  • Polycarbonate lens
  • Colour temperature and output selectable
  • Flicker free driver
  • Mains dimmable driver
  • Low glare capable UGR<13 (24°, 36°)
  • Low glare capable UGR<16 (60°)
  • IP44 from below ceiling
  • IC4 rated luminaire* (standard driver only)
  • Casambi ready (Casambi driver required)


 Applications

  • Offices
  • Galleries
  • Shopping Centres
  • Retail Displays
  • Hotels
  • Foyers


Standard Specifications

Input Voltage: 220 - 240 Vac Rated Input Power: 13W/ 15W/ 23W/ 25W
Lumen Output: 1270lm - 2450lm Colour Temperature: 3000K - 5000K
(*Single CCT / GS)
Beam Angle: 24°, 36°, 60° Control: Triac dimmable
CRI Rating: CRI>90 SDCM Rating: < 5 (*SDCM < 3 / GS)
Operating Temperature: - 20°C ~ 45°C IP Rating: IP44
IK Rating: IK08 IC Rating: IC4* (standard driver only)
Fitting Weight: 1.2kg ± 0.3kg Cutout: ⌀170 - 180mm

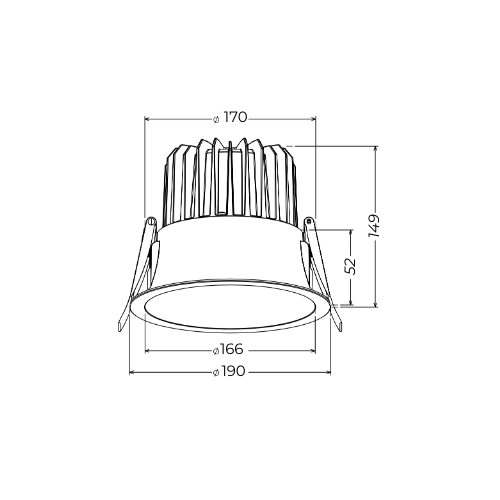

Dimensions: ⌀190 x 149mm (H)



Option List

Casambi  / CAS
DALI Dimmable / DALI
Greenstar Specification* / GS



IES Files

Please contact us for IES files


Photometric Charts

 24°
36°
60°


Models
NOTE: Add any required prefix from option list above to end of the model number. Example: DLI25WHXKD01C / DALI / GS (DALI Greenstar specified downlight).

Model Option Stock Code Availability
White / 3CCT / 24 Degrees DLI25WHXKD01C Special Order
White / 3CCT / 36 Degrees DLI25WHXKD02C Special Order
White / 3CCT / 60 Degrees DLI25WHXKD03C Special Order
White / 3CCT / 24 Degrees / 15° Tilt DLI25WHXKD01C / 02 Special Order
White / 3CCT / 36 Degrees / 15° Tilt DLI25WHXKD02C / 02 Special Order
White / 3CCT / 60 Degrees / 15° Tilt DLI25WHXKD03C / 02 Special Order
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.
