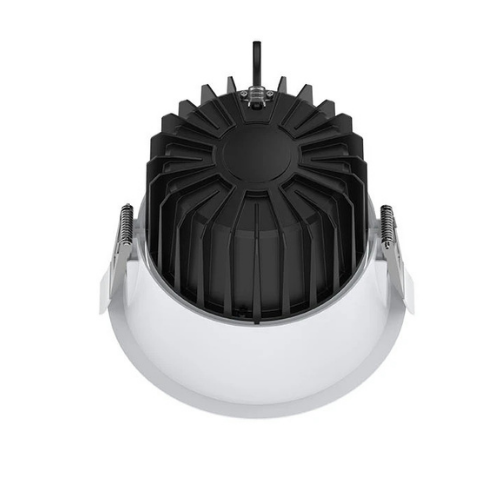

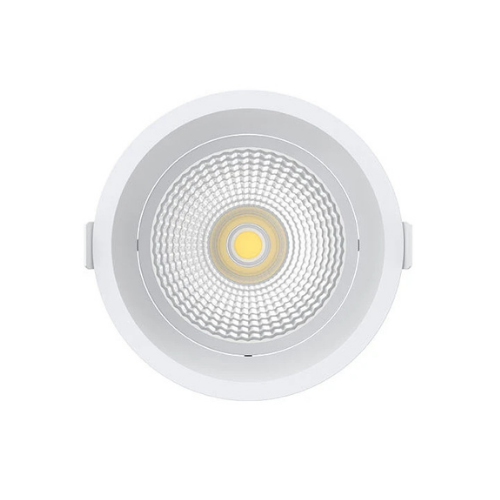

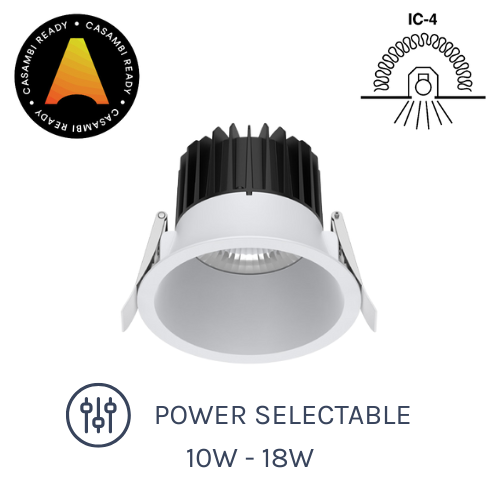

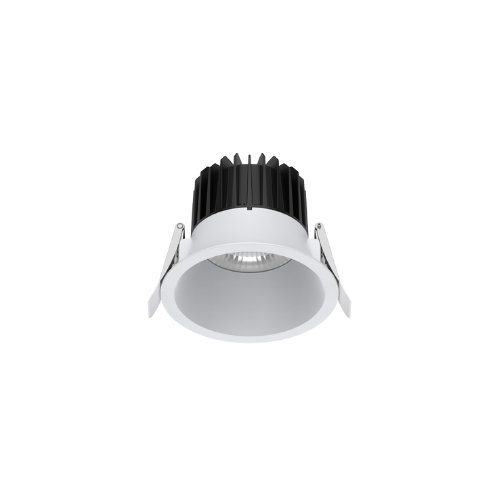

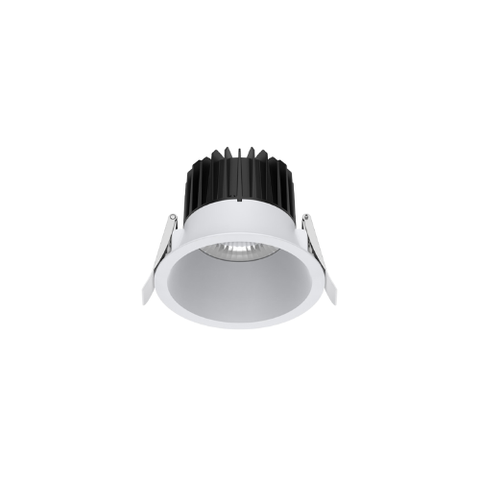

Introducing the DLI Series, Integrated Power’s premium low glare addition to their downlight range. This high spec series offers excellent colour rendition, high quality COB LED chips in a deep reflector housing for excellent low glare results. This series meets IC4 specifications* with superior heat dissipation in a diecast aluminium body. They are the perfect choice for commercial lighting projects including offices, galleries, shopping centres and more. Additionally, they are now Casambi Ready offering a plug and play
solution to upgrade to Casambi wireless smart controls.
Features
- High quality COB LED chips
- High lumen efficiency
- High colour rendition index
- Die-cast aluminium body
- Polycarbonate lens
- Colour temperature and output selectable
- Flicker free driver
- Mains dimmable driver
- Low glare capable UGR<13 (24°, 36°)
- Low glare capable UGR<16 (60°)
- IP44 from below ceiling
- IC4 rated luminaire* (standard driver only)
- Casambi ready (Casambi driver required)
Applications
- Offices
- Galleries
- Shopping Centres
- Retail Displays
- Hotels
- Foyers
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 10W/ 12W/ 16W/ 18W |
| Lumen Output: 970lm - 1850lm | Colour Temperature: 3000K - 5000K (*Single CCT / GS) |
| Beam Angle: 24°, 36°, 60° | Control: Triac dimmable |
| CRI Rating: CRI>90 | SDCM Rating: < 5 (*SDCM < 3 / GS) |
| Operating Temperature: - 20°C ~ 45°C | IP Rating: IP44 |
| IK Rating: IK08 | IC Rating: IC4* (standard driver only) |
| Fitting Weight: 0.79kg ± 0.3kg | Cutout: ⌀130 - 140mm |

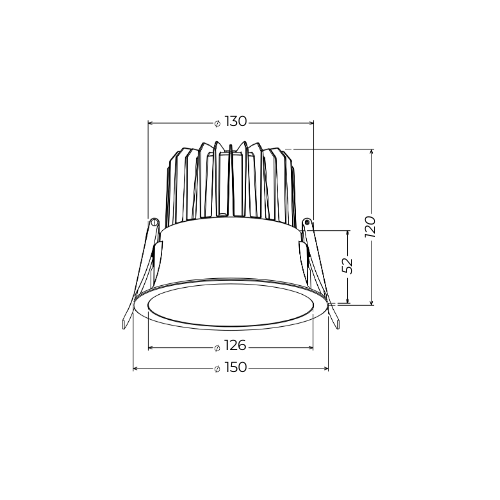

| Dimensions: ⌀150 x 120mm (H) |
Option List
| Casambi | / CAS |
| DALI Dimmable | / DALI |
| Greenstar Specification* | / GS |
IES Files
| Please contact us for IES files |
Photometric Charts
| 24° |
 |
| 36° |
 |
| 60° |
 |
Models
NOTE: Add any required prefix from option list above to end of the model number. Example: DLI18WHXKD01C / DALI / GS (DALI Greenstar specified downlight)
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 3CCT / 24 Degrees | DLI18WHXKD01C | Special Order |
| White / 3CCT / 36 Degrees | DLI18WHXKD02C | Special Order |
| White / 3CCT / 60 Degrees | DLI18WHXKD03C | Special Order |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
