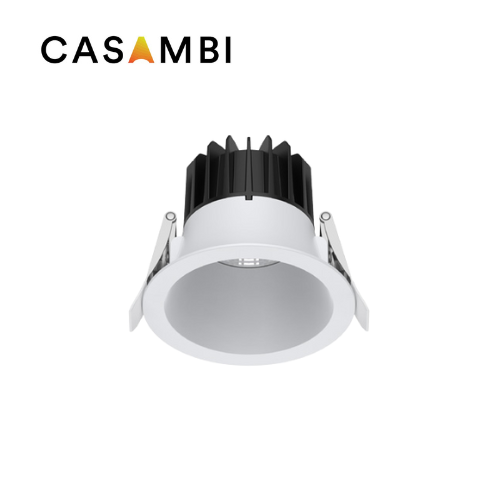

Introducing the DLI Series, Integrated Power’s premium low glare addition to their downlight range. This high spec series offers excellent colour rendition, high quality COB LED chips in a deep reflector housing for excellent low glare results. They are the perfect choice for commercial lighting projects including offices, galleries, shopping centres and more. This Casambi enabled downlight offers a full range of wireless smart lighting functions including dimming, grouping and more, providing complete flexibility across your projects.
Features
- High quality COB LED chips
- High lumen efficiency
- High colour rendition index
- Die-cast aluminium body
- Polycarbonate lens
- Tuneable white
- Flicker free driver
- Low glare capable UGR<13 (24°, 36°)
- Low glare capable UGR<16 (60°)
- IP44 from below ceiling
- Casambi wireless smart control
Applications
- Offices
- Galleries
- Shopping Centres
- Retail Displays
- Hotels
- Foyers
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 10W |
| Lumen Output: 820lm - 970lm | Colour Temperature: 3000K - 5000K (*Single CCT / GS) |
| Beam Angle: 24°, 36°, 60° | Control: Casambi |
| CRI Rating: CRI>90 | SDCM Rating: < 5 (*SDCM < 3 / GS) |
| Operating Temperature: - 20°C ~ 45°C | IP Rating: IP44 |
| IK Rating: IK08 | Fitting Weight: 0.48kg ± 0.3kg |
| Cutout: ⌀90 - 100mm | Dimensions: ⌀110 x 90mm (H) |
Option List
| Greenstar Specification* | / GS |
IES Files
| Please contact us for IES files |
Photometric Charts
| 24° |
 |
| 36° |
 |
| 60° |
 |
Models
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / Tuneable White / 24 Degrees | DLI10WHXKD01C / CAS | Special Order |
| White / Tuneable White / 36 Degrees | DLI10WHXKD02C / CAS | Special Order |
| White / Tuneable White / 60 Degrees | DLI10WHXKD03C / CAS | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
