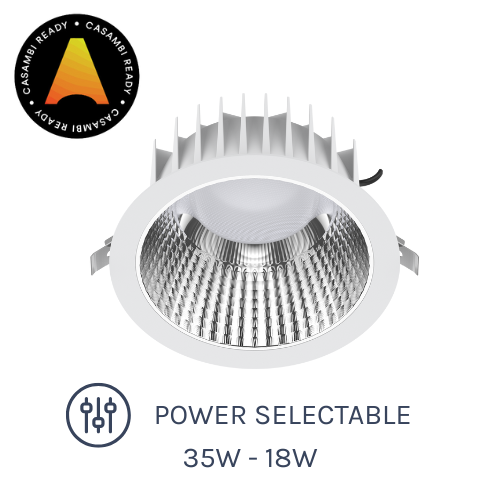

Integrated Power’s DLA Series 2 LED downlights offer a high spec, low glare option in a compact, stylish fitting. Additionally, they are now "Casambi Ready" offering a plug and play solution to upgrade to Casambi wireless smart controls. With great colour rendition (CRI90+) they are the perfect choice for commercial smart lighting applications with low glare requirements.
Features
- High colour rendition index
- Colour temperature selectable
- High lumen efficiency
- Low glare design (UGR <19 capable)
- Power selectable
- Flicker free driver
- Mains dimmable
- Diamond reflector
- Casambi ready (Casambi driver required)
Applications
- Offices
- Shopping Centre
- Libraries
- Foyers
- Functions Centres
- Passageways
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 18W - 35W |
| Lumen Output: 3300-3900lm | Colour Temperature: 3000K/4000K/5700K |
| CRI Rating: CRI>90 | SDCM Rating: < 6 |
| Beam Angle: 60° | IP Rating: IP54 |
| IK Rating: IK06 | Cutout: Ø200-210mm |
| Dimensions: Ø228 x 107mm | Fitting Weight: 1.13kgs |
Option List
| Casambi/ | CAS |
| DALI Dimming/ | DALI |
| Chrome Reflector/ | CR |
Accessories
| 35W Casambi Driver | CAS35DR01 |
IES Files
| IES DLA35WHXKD01C 4000K 35W |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 3CCT | DLA235WHXKD02C | Stock Item |
| Black / 3CCT | DLA235BKXKD02C | Special Order |
| Special order products typically have an 12-14 week lead time. Minimum order qty's may apply. | ||
