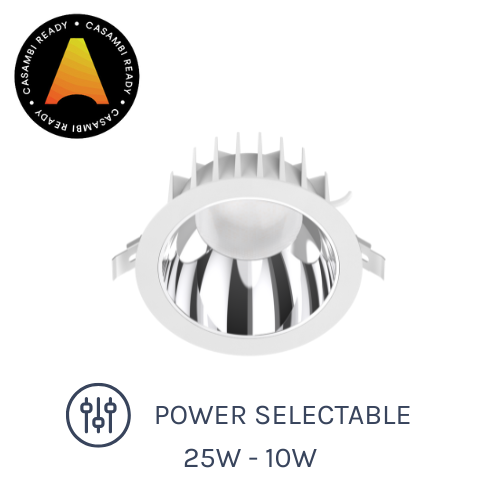

Integrated Power’s DLA Series 2 LED downlights offer a high spec, low glare option in a compact, stylish fitting. Additionally, they are now "Casambi Ready" offering a plug and play solution to upgrade to Casambi wireless smart controls. With great colour rendition (CRI90+) they are the perfect choice for commercial smart lighting applications with low glare requirements.
Features
- High colour rendition index
- Colour temperature selectable
- High lumen efficiency
- Low glare design (UGR <19 Capable)
- Power selectable
- Flicker free driver
- Mains dimmable
- Chrome reflector
- Casambi ready (Casambi driver required)
Applications
- Offices
- Shopping Centre
- Libraries
- Foyers
- Function Centres
- Passageways
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 10W - 25W |
| Lumen Output: 2200-2500lm | Colour Temperature: 3000K/4000K/5700K |
| CRI Rating: CRI>90 | SDCM Rating: <6 |
| Beam Angle: 60° | IP Rating: IP54 |
| IK Rating: IK06 | Cutout: Ø150-165mm |
| Dimensions: Ø172 x90mm | Fitting Weight: 0.69kgs |
Option List
| Casambi/ | CAS |
| DALI Dimming/ | DALI |
| Diamond Reflector/ | DR |
Accessories
| 25W Casambi Driver | CAS25DR01 |
IES Files
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 3CCT | DLA225WHXKD01C | Stock Item |
| Black / 3CCT | DLA225BKXKD01C | Special Order |
| Special order products typically have an 12-14 week lead time. Minimum order qty's may apply. | ||
