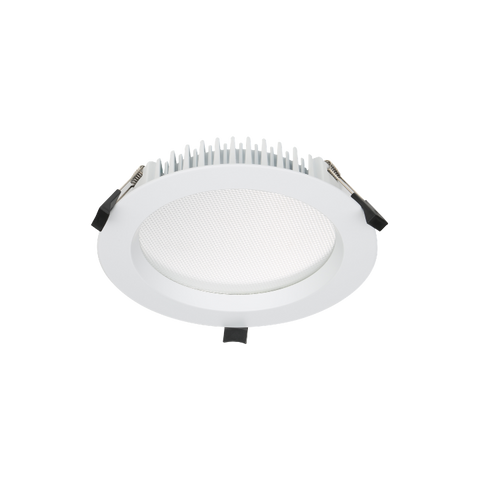

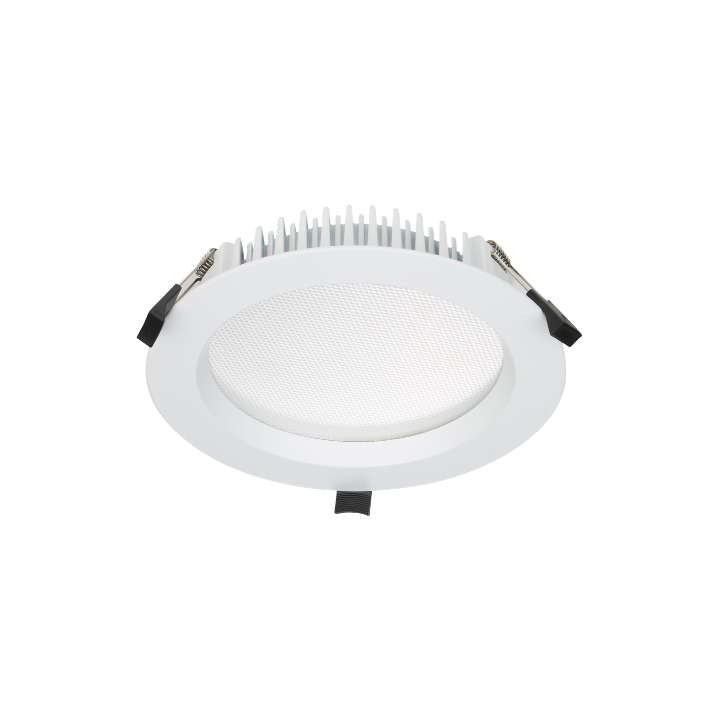

Integrated Power’s DL Series LED downlights offer high spec features in a compact, stylish fitting. With great colour rendition (CRI80+) and compatibility with a wide range of Australian dimmers, they are the perfect choice for a wide range of lighting applications.
Features
- Wide beam SMD LED technology
- High output LED chips
- Mains dimmable driver
- IP54 when installed
- Colour selectable
Applications
- Residential
- Offices
- Foyers
- Passageways
- Bathrooms
Standard Specifications
| Input Voltage: 200 - 240 Vac | Rated Input Power: 25W |
| Lumen Output: 2130lm - 2630lm | Beam Angle: 90° |
| Colour Temperature: 3000K / 4000K / 5700K | CRI Rating: CRI>80 |
| SDCM Rating: < 5 (lower bins available) | IP Rating: IP54 |

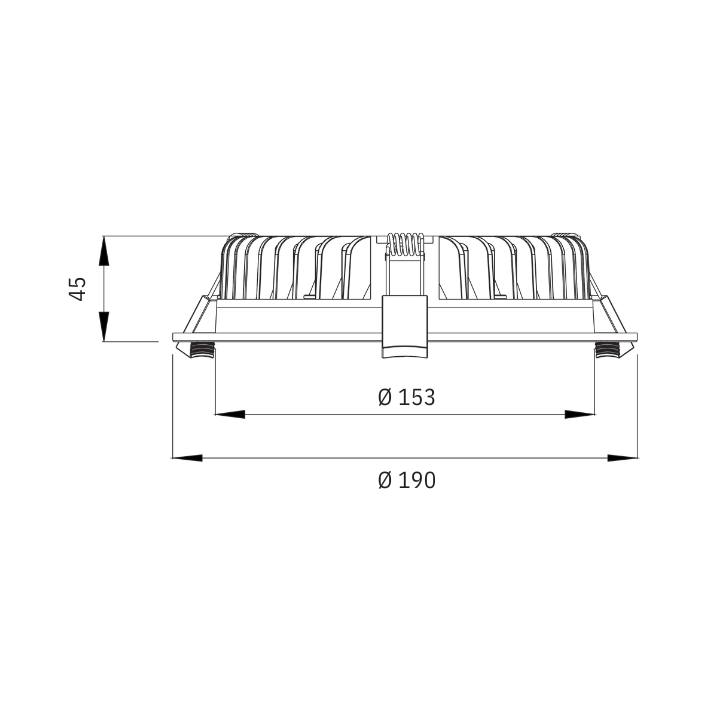

| Cutout: 160 - 170mm | Dimension: ⌀190*40mm |
| Fitting Weight: 0.69kgs |
Options (add option to end of stock code)
| Greenstar Specification | /GS |
| DALI Dimming | /DALI |
Accessories
| 25W White Adaptor Ring - 240mm | DLADP03 |
| 25W White Adaptor Ring - 260mm | DLADP04 |
| Indoor Motion Sensor - Surface Mount | SE1WHN01 |
| Indoor Motion Sensor - Recessed Mount | SE1WHN02 |
| Indoor Motion Sensor - Presence Surface Mount | SE1WHN03 |
| Indoor Motion Sensor - High Ceiling | SE1WHN04 |
| Outdoor Motion Sensor - Microwave | SE1WHN05 |
| Outdoor Motion Sensor - Infrared | SE1WHN06 |
IES Files
| IES DL25WH3KD01 25W 3000K |
| IES DL25WH4KD01 25W 4000K |
| IES DL25WH5KD01 25W 5000K |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 3CCT Selectable | DL25WHXKD01 | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
