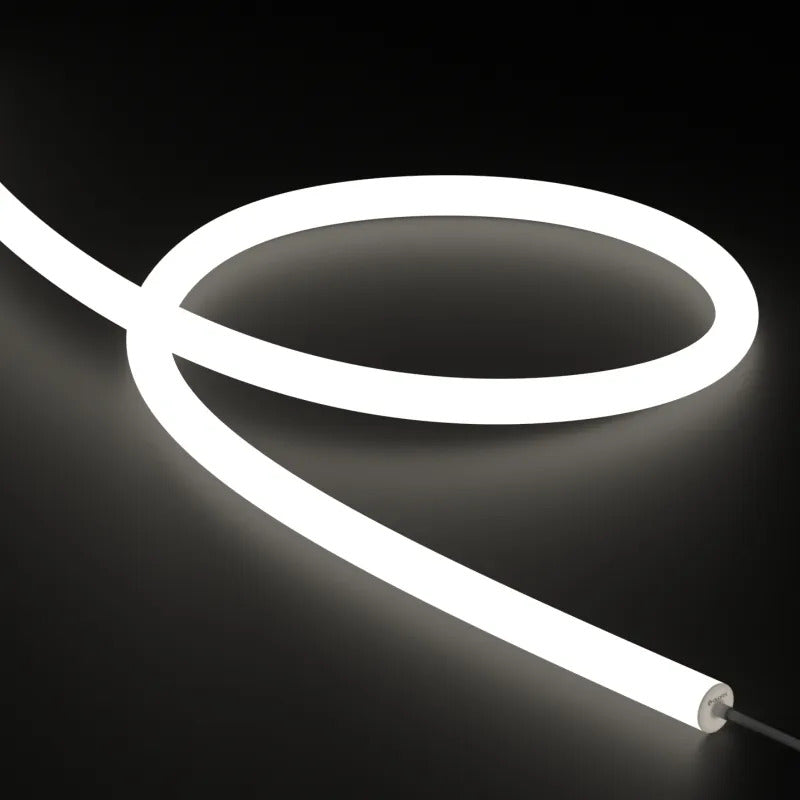

Unleash your creativity with Orbit ShapeHold a 360° glowing, sculptable LED strip that bends, holds, and illuminates from every angle. Designed for standout installations, it’s perfect for loops, curves, spirals, and custom shapes that lock into place. With advanced ShapeHold technology, this sculptable strip lets you craft bold contours, intricate patterns, or freeform lighting with complete control.
Features
- 360° Uniform Glow – Seamless, all-around illumination for a full light effect

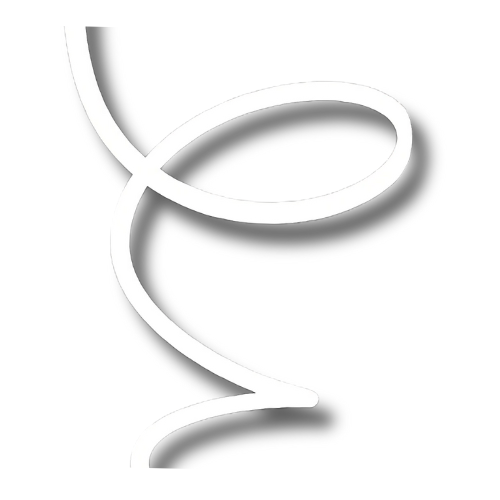

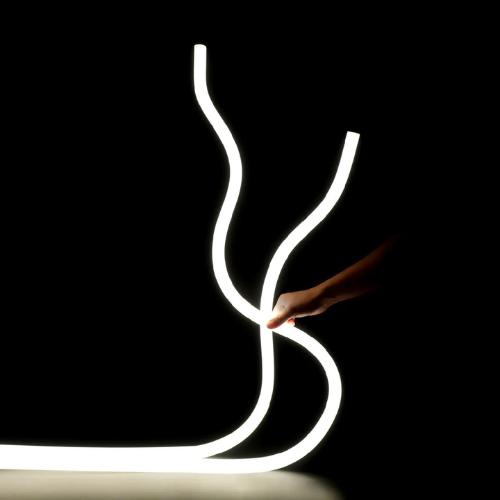

- Sculptable ShapeHold™ Technology – Maintains form after bending, no fixing tools required
- Flexible in All Directions – Splice and bend freely for creative and custom layouts
- No Fixing Tool Required – Shape retention achieved without external supports

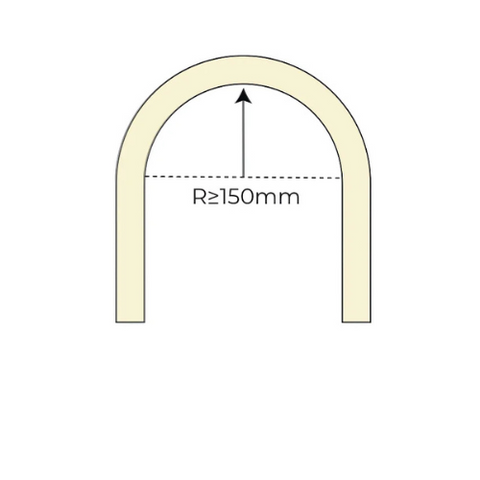

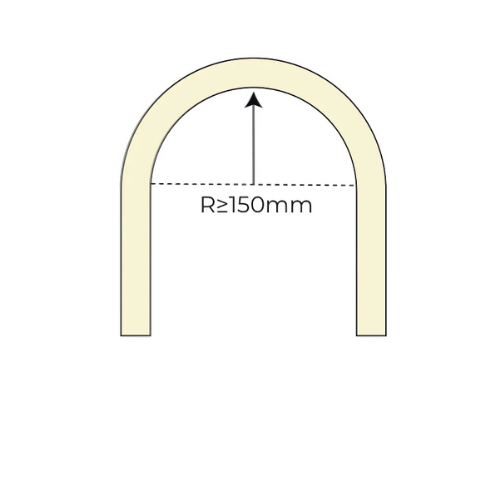

- Maximum Bend Radius >150mm – Smooth curvature for flowing and rounded designs

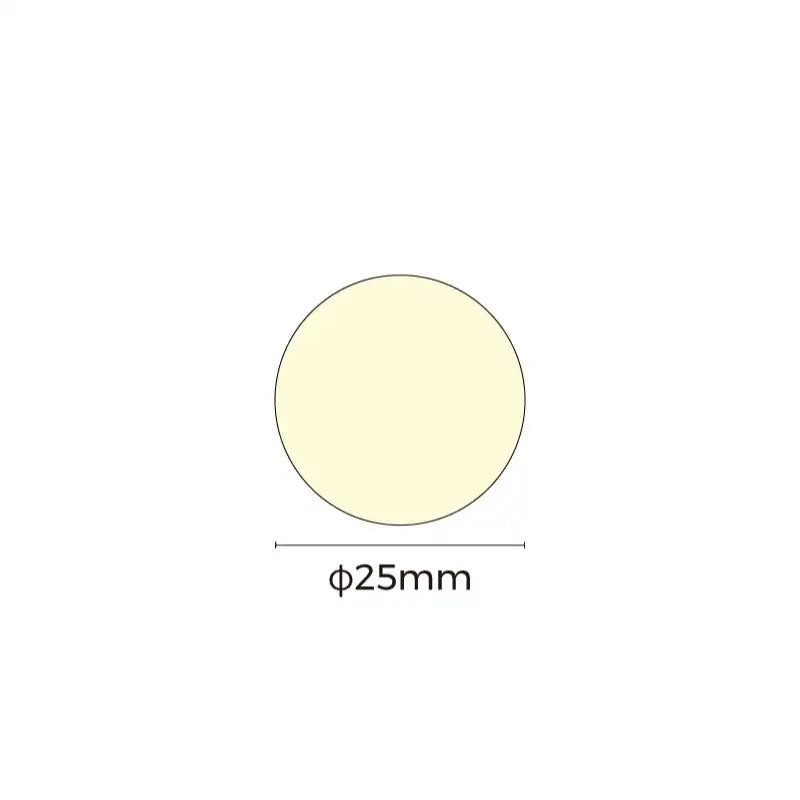

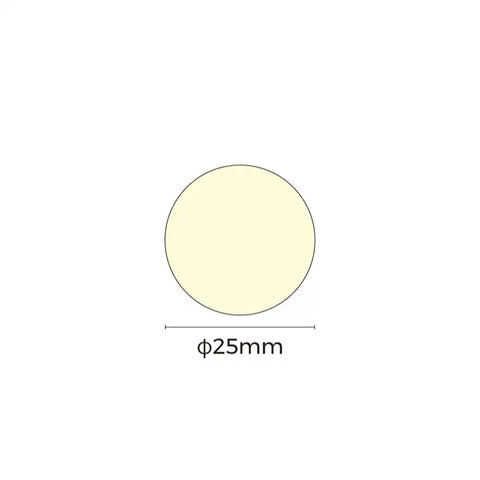

- 25mm Diameter – Ideal balance of flexibility and visual presence
- IP65 Rated
- Supplied in standard 5m lengths
Applications
- Architectural
- Interior Decorative Lighting
- Office Lighting
- Decorative Lighting
- Artistic Lighting
Standard Specifications
Rated Power: 20W/M (22.4W/M Max) | Input Voltage: 24V |
Input Current: 0.83A | Dimensions: Ø25mm |
Colour Temperature: 3000K / 4000K | Lumen Output @ 3000K: 1180lm/m |
Lumen Output @ 4000K: 1140lm/m | Beam Angle: 360° |
LED Quantity: 544.2 LEDs/m | Maximum Bend Radius: > 150mm |

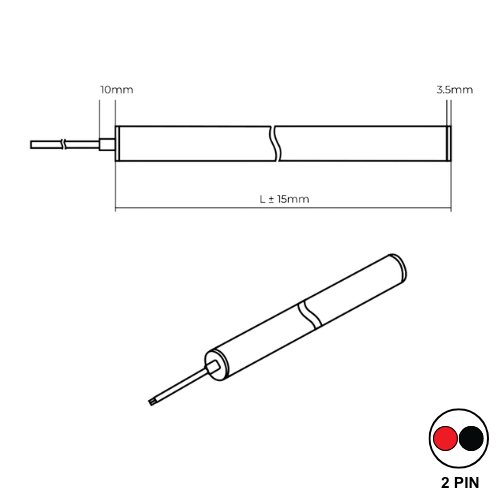

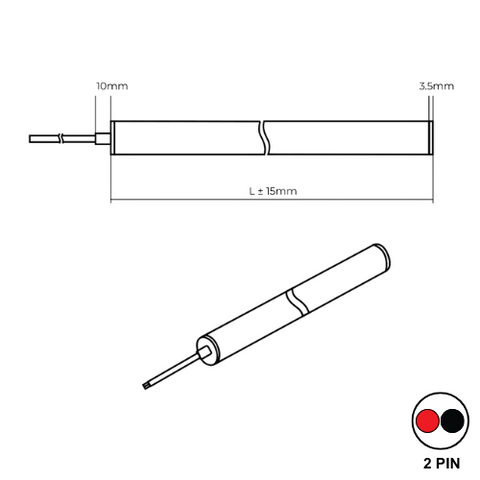

Standard Connector: Factory Fitted - Single (IP65) Glued End Cap Cable Entry - Top / 04 | Wire Length: 2 Metres (PVC) Factory Fitted |
Packing Length: 5 Metres (Max Run Length) | IP Rating: IP65 |
IK Rating: IK08 | CRI Rating: CRI>90 |
SDCM Rating: < 5 | Operating Temperature: 0℃ ~ 40℃ |
Warranty: 3 Years |
*Product is not designed for prolonged outdoor installation (No cutting - customised lengths factory made)
Options
LED Length Options
Customizable Lengths |
Colour Temperature Options
2300K |
2700K |
Connector Wire Options
50cm |
200cm |
Customizable Lengths |
Control Options
0-10V Dimming | / 0-10V |
Mains Dimming | / Mains |
DALI Dimming | / DALI |
Casambi Control | / CAS |
IES Files
IES OBO5U20T3K20/01 3000K ShapeHold |
IES OBO5U20T4K20/01 4000K ShapeHold |
Cable Entry Options
Single Cable Entry - Right Side / 02
|
![]() |
Single Cable Entry - Top / 04
|
![]() |
Accessories
![]() |
Orbit Flex Clear Saddles -1pcs Fixed Ceiling Install Recommend 3 pcs/1m, 5pcs/2.5M, 8pcs/5M |
OBAAS-NNR25P1-25 |
![]() |
Orbit Flex Ceiling Mount Kit - 2Pcs Install method - Double end vertical ceiling - Top Cable Entry Includes: pendant end cap\ screws |
OBAAS-NNR25VCC1-XX-2 |
![]() |
Orbit Flex Telescopic Suspension Kit -1Pcs Includes: universal round tube, concealed fixing clips, expansion rod Can be Shaped & Hoisted, Direct/side outgoing line Telescopic pole length: 0.3-0.6M Recommend - 1PCS/0.5M |
OBAAS-NNR25DHX- 0038 |
![]() |
Orbit Flex Joiner Kit - White Splicable Mounting Kit includes - Connecting ring/ Connector / screws |
OBAAS-NNR25DHS-XX-OW |
![]() |
Orbit Flex Joiner Kit - Silver Splicable Mounting Kit includes - Connecting ring/ Connector / screws |
OBAAS-NNR25DHS-XX |
((Note: Above accessories are stocked models. There are more accessory options available upon request)
Models
Model Option | Stock Code | Availability |
---|---|---|
Orbit Shapehold 3000K 20W/M Top Connector EC 5M Roll | OBO5U20T3K20/01 | Stock Item |
Orbit Shapehold 4000K 20W/M Top Connector EC 5M Roll | OBO5U20T4K20/01 | Stock Item |
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. |
