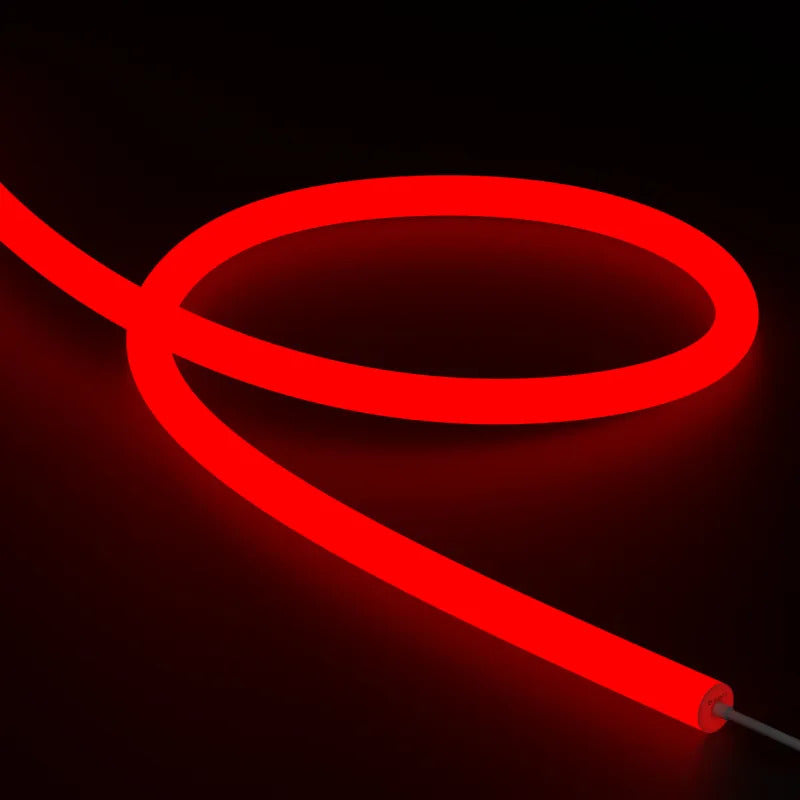

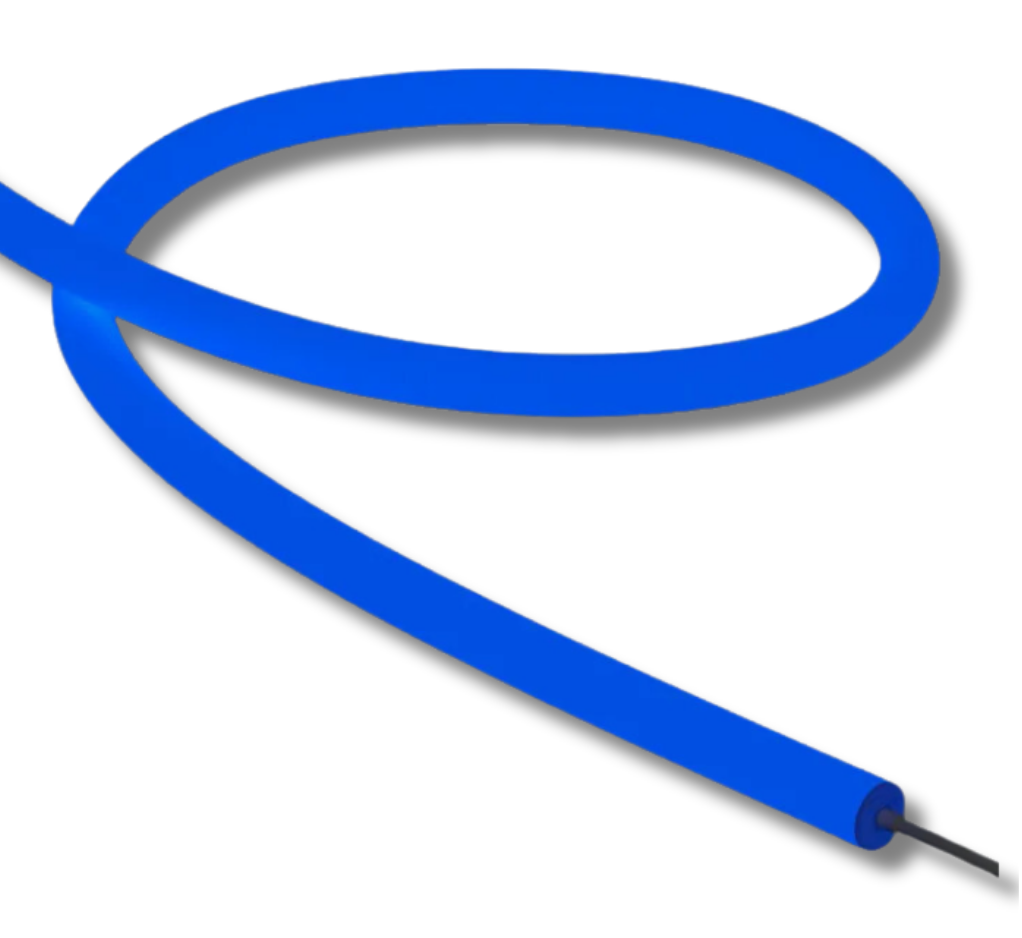

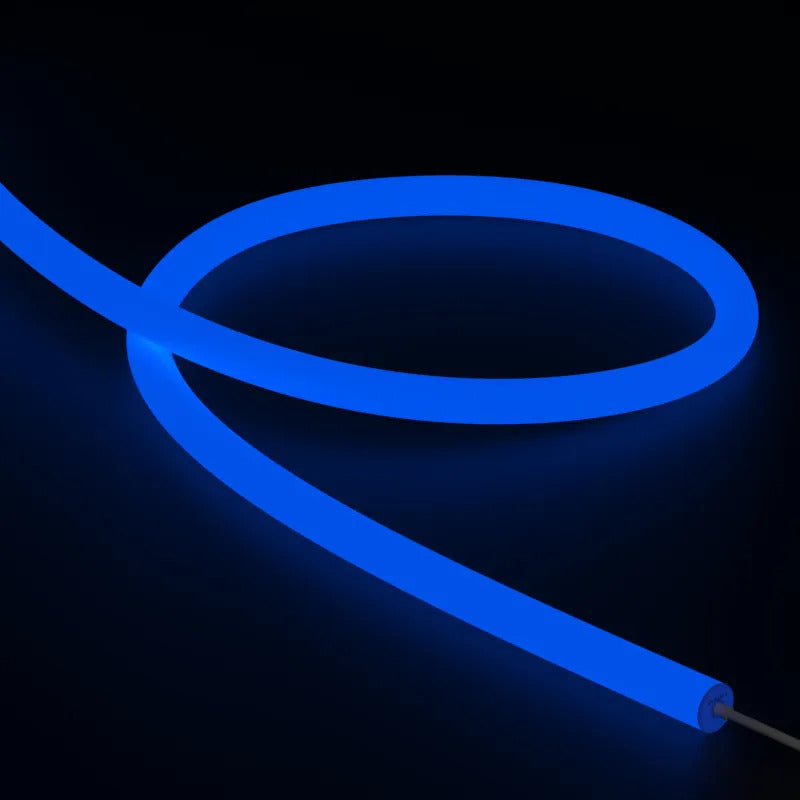

Unleash your creativity with the Omnibend Orbit, a 360° glowing, sculptable LED strip that bends easily and illuminates from every angle. Designed for standout installations, it’s perfect for loops, curves & spirals. This flexible strip allows you to shape bold contours, flowing patterns, or artistic lighting effects with total freedom. Ideal for architectural accents, interior decorative lighting, office environments, or artistic displays.
Features
- 360° Uniform Illumination – Emits light evenly in all directions for a full-glow effect
- 25mm Diameter – Balanced for visibility and flexibility in design
- Flexible & Sculptable – Easily bends into curves, spirals, and flowing forms
- High Design Versatility – Suitable for both functional and artistic applications
- Cuttable & Connectable – Can be trimmed and joined for custom lengths
- Multiple Mounting Options – Surface mount, suspended, or embedded
- Available in Various CCTs – Match any mood or design specification
- Supplied in standard 5m lengths
Applications
- Architectural
- Interior Decorative Lighting
- Office Lighting
- Decorative Lighting
- Artistic Lighting
Standard Specifications
| Rated Power: 17.2W/M (19.8W/M Max) | Input Voltage: 24V |
| Input Current: 0.72A | Dimensions: Ø25mm |
| Colour Temperature: RGBW/ 3200K, RGBW/ 4500K | Beam Angle: 360° |
| LED Quantity: 384 LEDs/m | Minimum Cut: 24 LEDs/ 62.5mm |

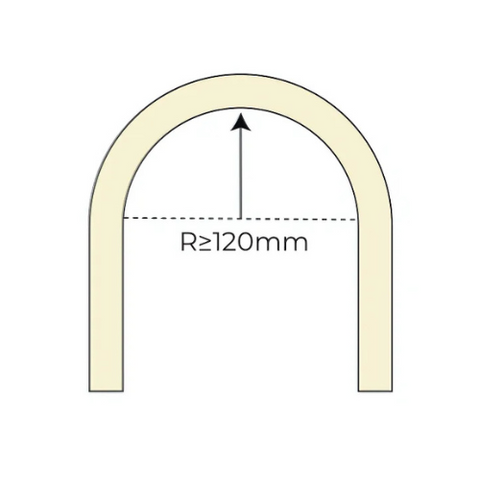

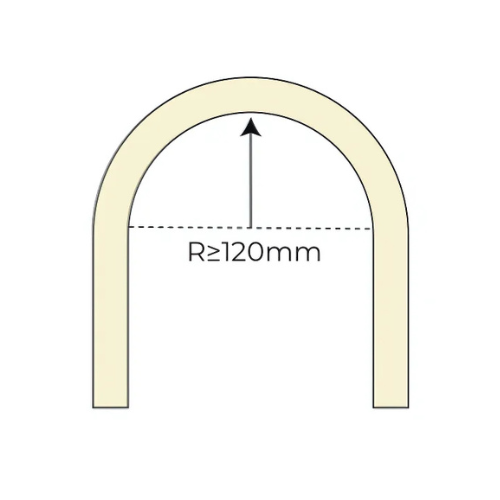

| Maximum Bend Radius: > 120mm | Bend Type: 360° |

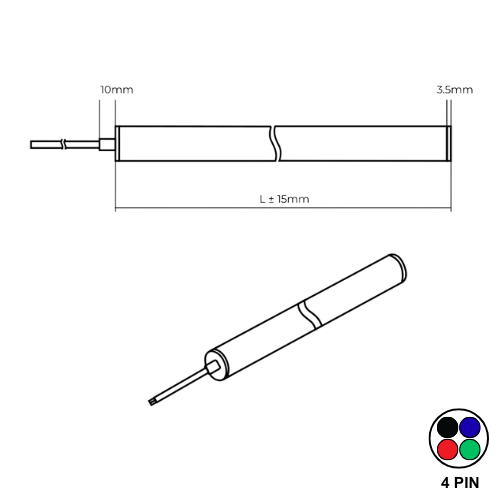

| Standard Connector: Factory Fitted - Single (IP65) - Glued End Cap Cable Entry - Top / 04 | Wire Length: 2 Metres (PVC) Factory Fitted |
| Packing Length: 5 Metres (Max Run Length) | IP Rating: IP65 |
| IK Rating: IK08 | SDCM Rating: < 5 |
| Operating Temperature: 0℃ ~ 40℃ | Warranty: 3 Years |
*Product is not designed for prolonged outdoor installation (No cutting - customised lengths factory made)
Options
LED Length Options
| Customizable Length |
Colour Temperature Options
| RGBW / 2300K |
| RGBW / 2700K |
| White Single Colour |
Connector Wire Options
| 50cm |
| 200cm |
| Customizable Length |
Control Options
| Casambi Control | / CAS |
| PWM Control | / PWM |
| SPI Control | / SPI |
| DMX Control | / DMX |
IES Files
| IES files available on request |
Cable Entry Options
|
Single Cable Entry - Right Side / 02
|
 |
|
Single Cable Entry - Top / 04
|
 |
Accessories
 |
Orbit Flex Clear Saddles -1pcs Fixed Ceiling Install Recommend 3 pcs/1m, 5pcs/2.5M, 8pcs/5M |
OBAAS-NNR25P1-25 |
 |
Orbit Flex Ceiling Mount Kit - 2Pcs Install method - Double end vertical ceiling - Top Cable Entry Includes: pendant end cap\ screws |
OBAAS-NNR25VCC1-XX-2 |
 |
Orbit Flex Telescopic Suspension Kit -1Pcs Includes: universal round tube, concealed fixing clips, expansion rod Can be Shaped & Hoisted, Direct/side outgoing line Telescopic pole length: 0.3-0.6M Recommend - 1PCS/0.5M |
OBAAS-NNR25DHX- 0038 |
 |
Orbit Flex Joiner Kit - White Splicable Mounting Kit includes - Connecting ring/ Connector / screws |
OBAAS-NNR25DHS-XX-OW |
 |
Orbit Flex Joiner Kit - Silver Splicable Mounting Kit includes - Connecting ring/ Connector / screws |
OBAAS-NNR25DHS-XX |
 |
Orbit Flex Suspension Tube Mount Kit Install method - Horizontal Lifting, Includes PC Round Tube 80mm / Length of Wire Rope - 4M Recommend - 1PCS/0.5M |
OBAAS-NNR25LHX-0080-OP |
 |
Orbit Flex 1m Clear Tube & Ceiling Mount Kit Install Method - Single end vertical, Top Cable Connector Silver Accessories |
OBAAS-NNR25VCC1-1000-OS |
 |
Orbit Flex Suspension Mount Kit Install method - Horizontal pendant - Transparent Tube Recommend - 1PCS/0.5M |
OBAAS-NNR25LHS-0080 |
(Note: Above accessories are stocked models. There are more accessory options available upon request)
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| Orbit Flex RGBW + 3200K 17.2W/M Top Connector EC 5M Roll | OBO5U20TRGB32K20/01 | Stock Item |
| Orbit Flex RGBW + 4500K 17.2W/M Top Connector EC 5M Roll | OBO5U20TRGB45K20/01 | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
