OmniBend Series Neon LED Strip Top Bend - 10W/M (5M Roll)

  • Sale
  • Regular price

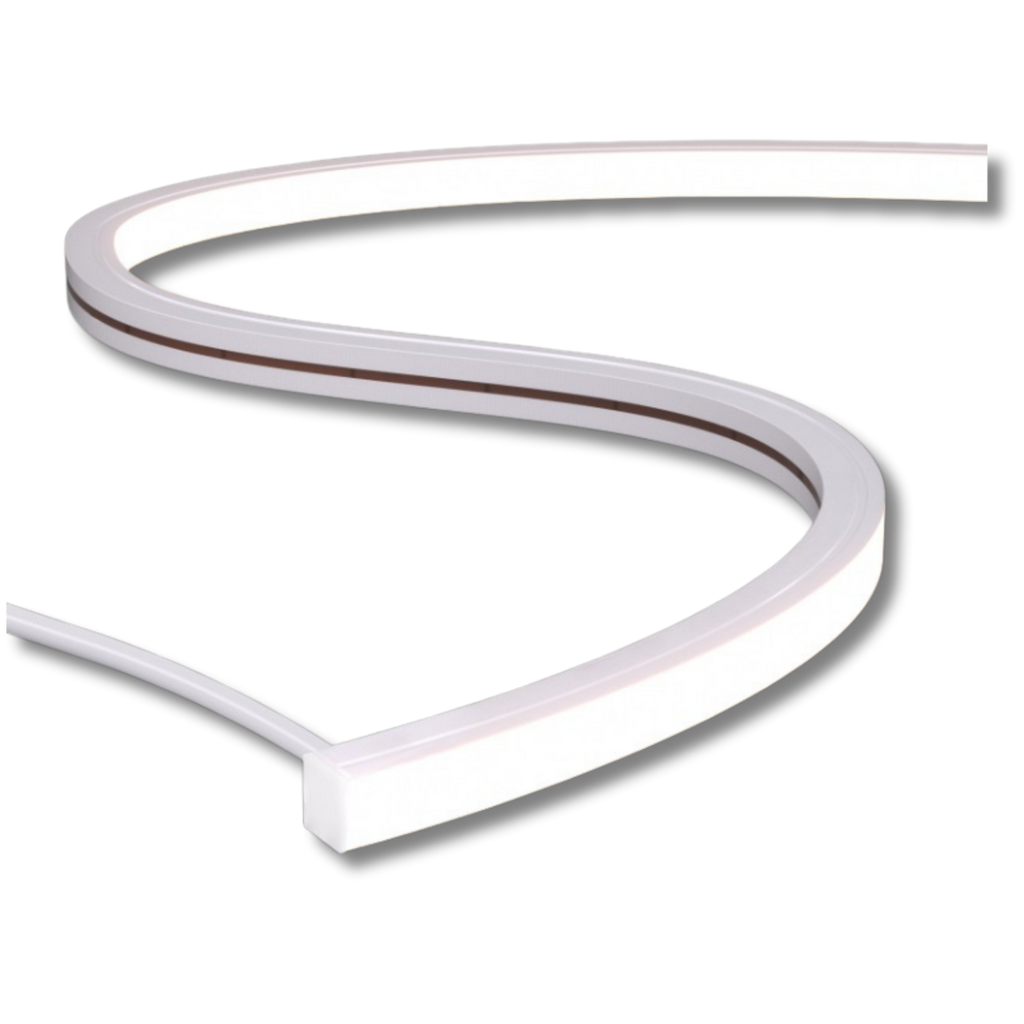

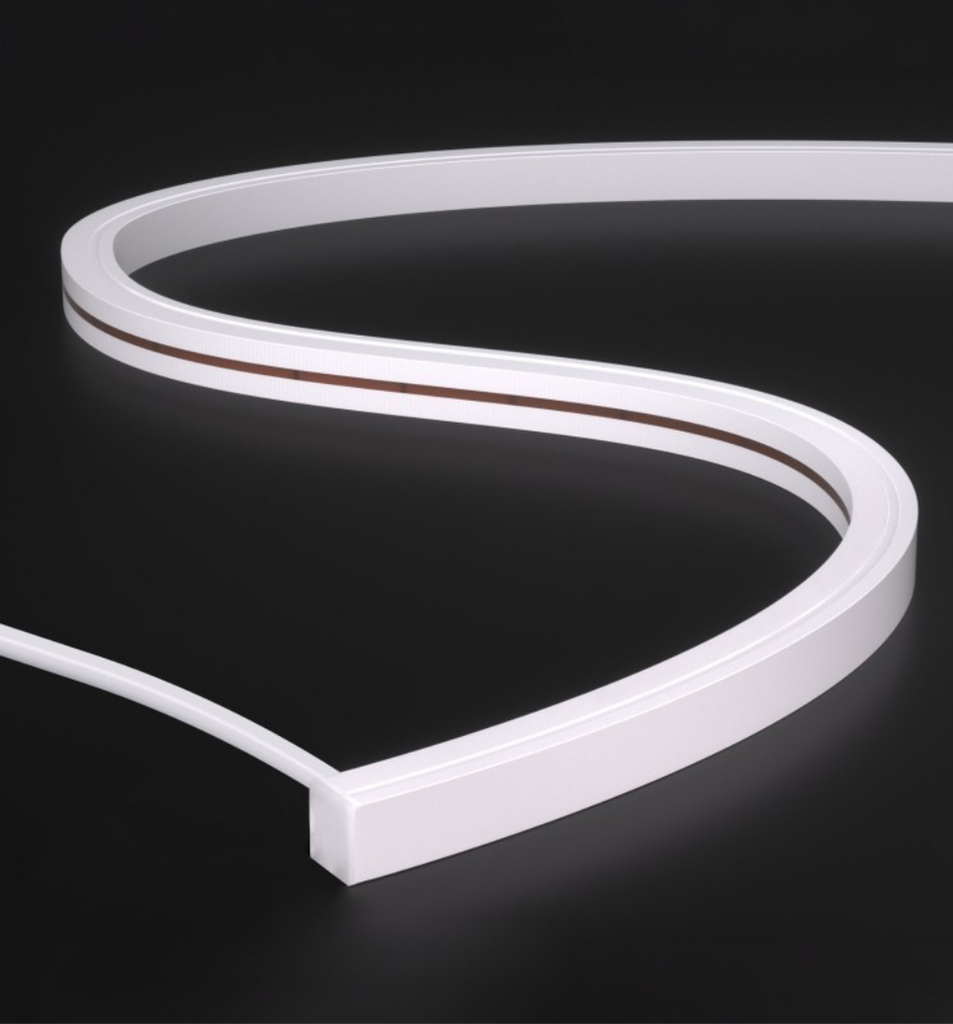

OmniBend Neon is a high-performance, weather-resistant silicone LED strip that’s built to last and designed to shine. Engineered for both interior and exterior applications, this flexible lighting solution offers customizable options to suit a wide variety of projects. Whether you're illuminating architectural features, signage, or outdoor environments, OmniBend Neon delivers reliable performance with standout visual appeal.


Features

  • Silicone IP67 Neon strip
  • Ultra-high structural strength
  • Super weather durability
  • Suitable for harsh outdoor environments
  • Long lifespan
  • Anti-breakage PCB design
  • Manufactured with Gas Phase Silica gel
  • UV weather resistance
  • Yellowing & corrosion resistance
  • Silicone wire connection for IP67
  • High light transmittance - Up to 90%
  • Fireproof & flame retardant
  • Flexible customizations options
  • Supplied in standard 5m lengths



Applications

  • Architectural
  • Exterior & Interior Decorative Lighting
  • Façade Lighting
  • Landscape Lighting
  • Artworks
  • Cove Lighting
  • Feature Lighting
  • Signage



Standard Specifications


 Rated Power: 10W/M (11W/M Max) Input Voltage: 24V

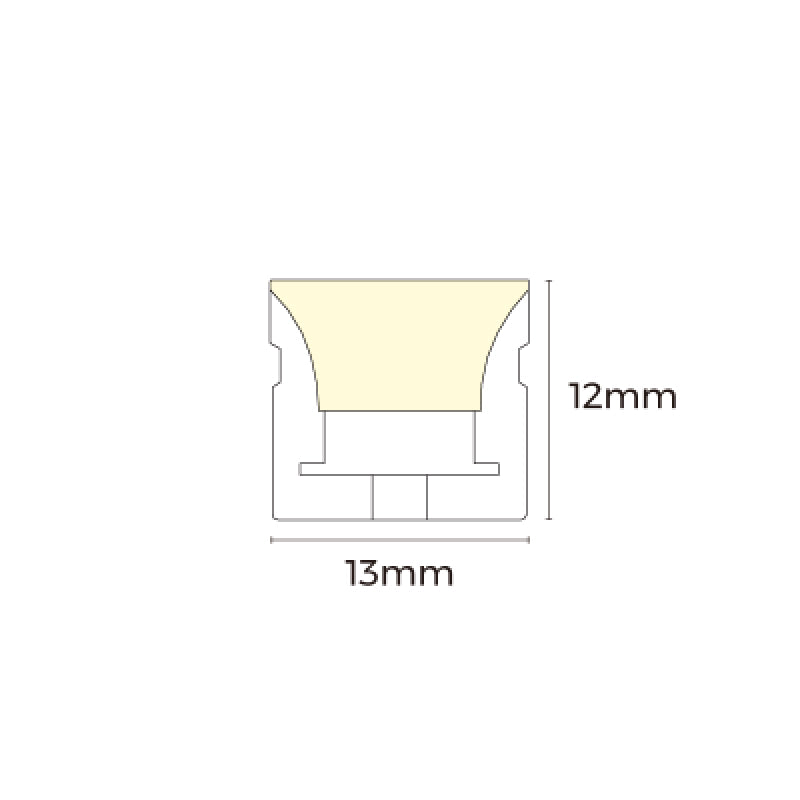

Input Current: 0.4A Dimensions: 13mm (W) x 12mm (H)
Colour Temperature: 3000K / 4000K Lumen Output @ 3000K: 750lm/m
Lumen Output @ 4000K: 860lm/m Beam Angle: 120°
LED Quantity: 320 LEDs/m Minimum Cut: 16 LEDs/ 50mm

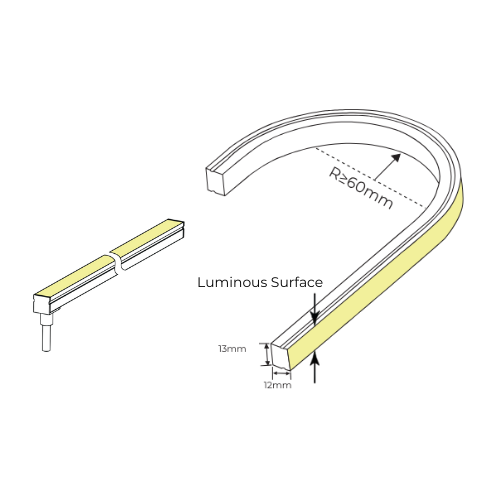

Maximum Bend Radius: 60mm Bend Type: Top Bend
Standard Connector: Factory Fitted - Single ENP (IP67) - Hydraulic End Cap Cable Entry - Bottom / 01 Wire Length: 2 Metres (Silicone) Factory Fitted
Packing Length: 5 Metres Maximum Run Length: 10 Metres
IP Rating: IP67 IK Rating: IK08
CRI Rating: CRI>90 SDCM Rating: < 5
Operating Temperature: 0℃ ~ 40℃ Warranty: 5 Years



Options

LED Length Options

10 Metre Roll
Customizable Lengths


Colour Temperature Options

2700K
6500K


Connector Wire Options

25cm
50cm
Customizable Lengths


Control Options

0-10V Dimming / 0-10V
Mains Dimming / Mains
DALI Dimming / DALI
Casambi Control / CAS


IES Files

IES OBN5T103K1312/01 3000K Top Bend
IES OBN5T104K1312/01 4000K Top Bend



Cable Entry Options

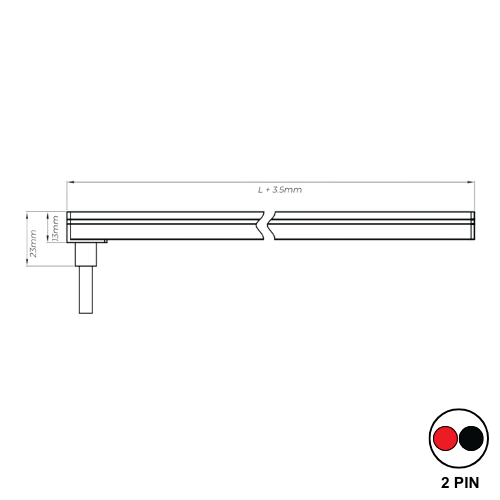

Single Cable Entry - Bottom / 01
Single Cable Entry - Right Side / 02
OmniBend Series strip light cable entries – high-quality wiring solutions for flexible side-bend neon LED strip applications
Single Cable Entry - Left Side / 03
OmniBend Series strip light cable entries – high-quality wiring solutions for flexible side-bend neon LED strip applications
Single Cable Entry - Top / 04
OmniBend Series strip light cable entries – high-quality wiring solutions for flexible side-bend neon LED strip applications
Dual Cable Entry - Top / 05
Dual Cable Entry - Bottom / 06
Dual Cable Entry - Left Side / 07
Dual Cable Entry - Right Side / 08



Accessories

Mounting Options

Neon Mounting Clip with Reserved Wire Outlet - 25mm - Top Bend. Recommend - 3PCS per metre OBAAS-NMT1312A-1000
Neon Recessed Cable Mounting Rail with Reserved Wire Outlet - 1000mm - Top Bend  OBAAS-NMT1312B1-25
Neon Mounting Rail - 1000mm - Aluminium - Top Bend OBAAS-NMT1312B1-1000
Neon PC Transparent Mounting Rail - 1000mm - Top Bend OBAAS-NMT1312P-1000
Neon Mounting Rail Flexible - 500mm - Aluminium - Top Bend. Recommend - 2PCS per metre, can not be used light side down OBAAS-NMT1312M-500



Connector Options

Neon Quick Connector Solder free plug - IP65 - Top Bend. Note - Suitable for Monochrome (Single Color) only OBASS-NMT1312TX0-FL

Neon Quick Connector without cable - IP65 - Solder Free - Top Bend. Note - Suitable for Monochrome (Single Color) only

OBAAS-NMT1312MX0-FL

Neon Quick Connector 300mm Cable, Solder Free - IP65 - Top Bend. Note - Suitable for Monochrome (Single Color) only

OBAAS-NMT1312MH0-FL

Neon DC cable kit top entry 0.5m - IP65 - Solder free plug - Top Bend. Note - Suitable for Monochrome (Single Color) only

OBASS-NMT1312HT0-FL

Neon cable End side right 500mm Solder Free - IP65 - Top Bend. Note - Suitable for Monochrome (Single Color) only

OBAAS-NMT1312HR0-FL

Neon cable end side left 500mm Solder Free - IP65 - Top Bend. Note - Suitable for Monochrome (Single Color) only

OBAAS-NMT1312HL0-FL

Neon cable end bottom 500mm Solder Free, IP65 - Top Bend. Note - Suitable for Monochrome (Single Color) only

OBAASNMT1312HB0-FL
Neon Silicone End Cap Top Entry IP65 - Top Bend OBAASNMT1312GH0-EC
Neon Silicone End Cap Side Entry Solder Free IP65 - Top Bend OBAASNMT1312GS0-EC
Neon Silicone End Cap Bottom Entry IP65 - Top Bend OBAASNMT1312GD0-EC
Neon Strip Acidic Glue 10ml OBAAS-PG-0002
Neon Strip Cutters OBAAS-JD-0001



Models

Model Option Stock Code Availability
3K Neon Top Bend 10W/M Bottom Connector EC 5M Roll OBN5T103K1312/01 Stock Item
4K Neon Top Bend 10W/M Bottom Connector EC 5M Roll OBN5T104K1312/01 Stock Item
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.
