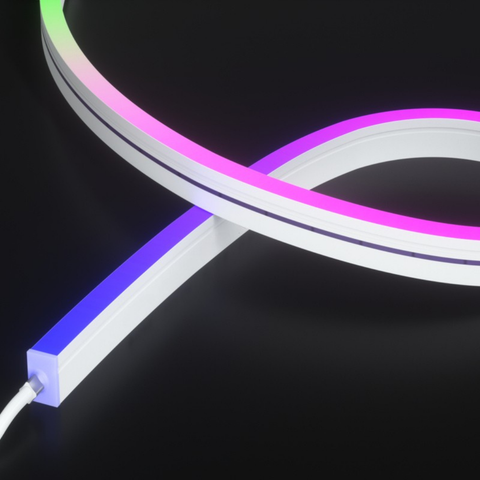

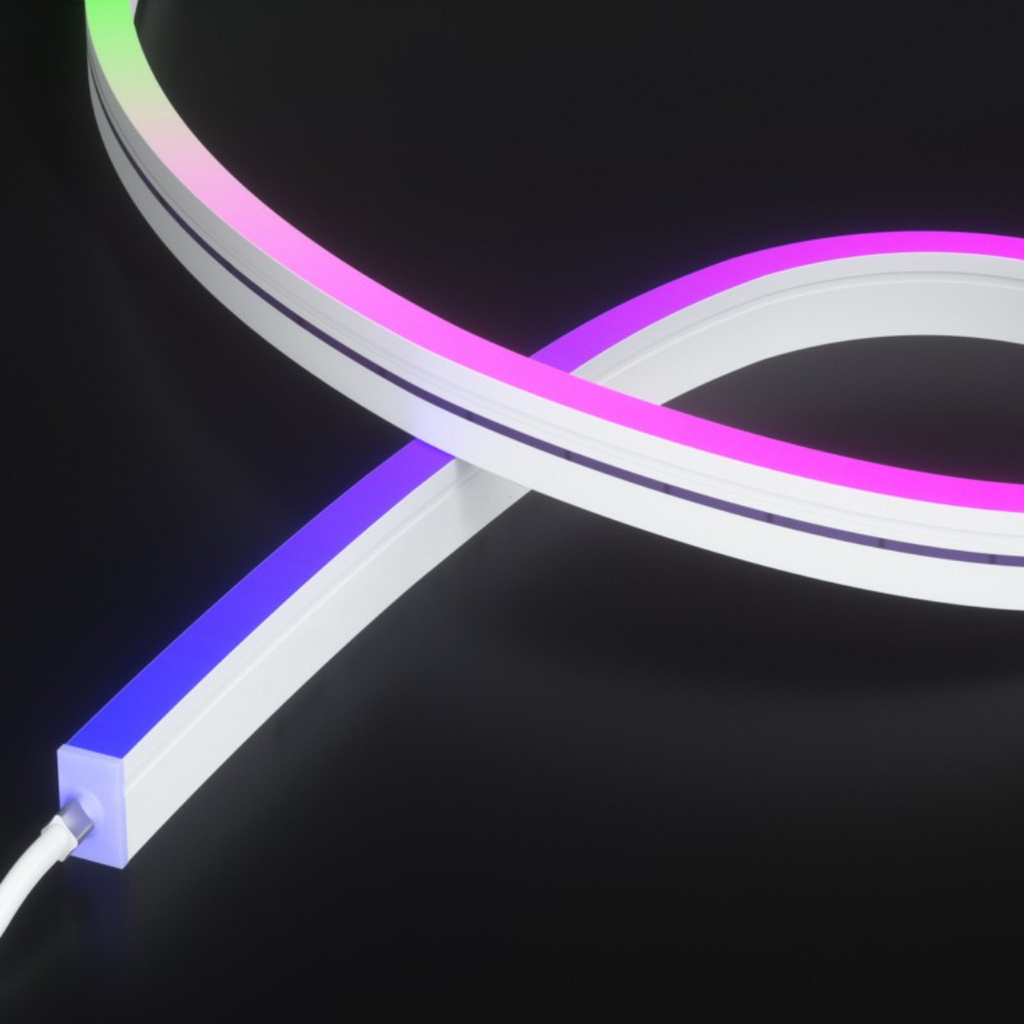

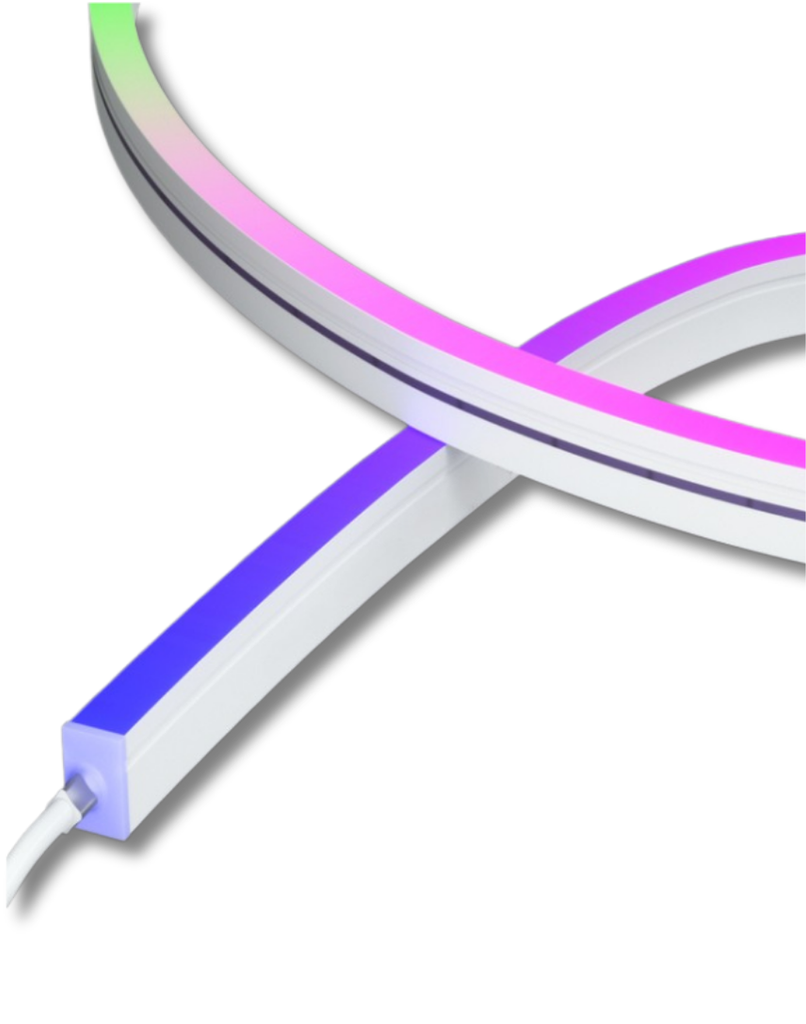

OmniBend Series Neon LED RGBW Strip Side Bend - 12W/M (5M Roll)

  • Sale
  • Regular price $0.00


OmniBend Neon is a high-performance, weather-resistant silicone LED strip that’s built to last and designed to shine. Engineered for both interior and exterior applications, this flexible lighting solution offers customizable options to suit a wide variety of projects. Whether you're illuminating architectural features, signage, or outdoor environments, OmniBend Neon delivers reliable performance with standout visual appeal.


Features

  • Silicone IP67 Neon strip
  • Ultra-high structural strength
  • Super weather durability
  • Suitable for harsh outdoor environments
  • Long lifespan
  • Anti-breakage PCB design
  • Manufactured with Gas Phase Silica gel
  • UV weather resistance
  • Yellowing & corrosion resistance
  • Silicone wire connection for IP67
  • High light transmittance - Up to 90%
  • Fireproof & flame retardant
  • Flexible customizations options
  • Supplied in standard 5m lengths



Applications

  • Architectural
  • Exterior & Interior Decorative Lighting
  • Façade Lighting
  • Landscape Lighting
  • Artworks
  • Cove Lighting
  • Feature Lighting
  • Signage



Standard Specifications

 Rated Power: 12W/M (13.2W/M Max) Input Voltage: 24V

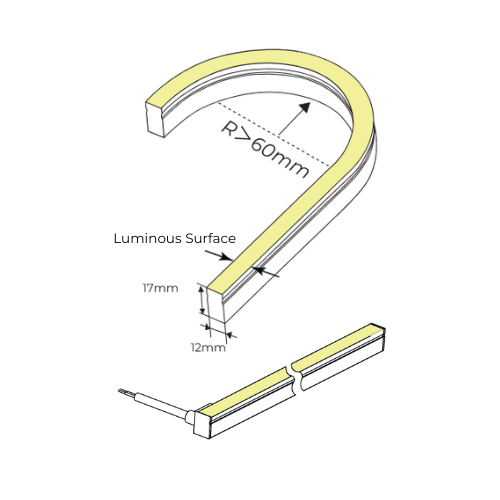

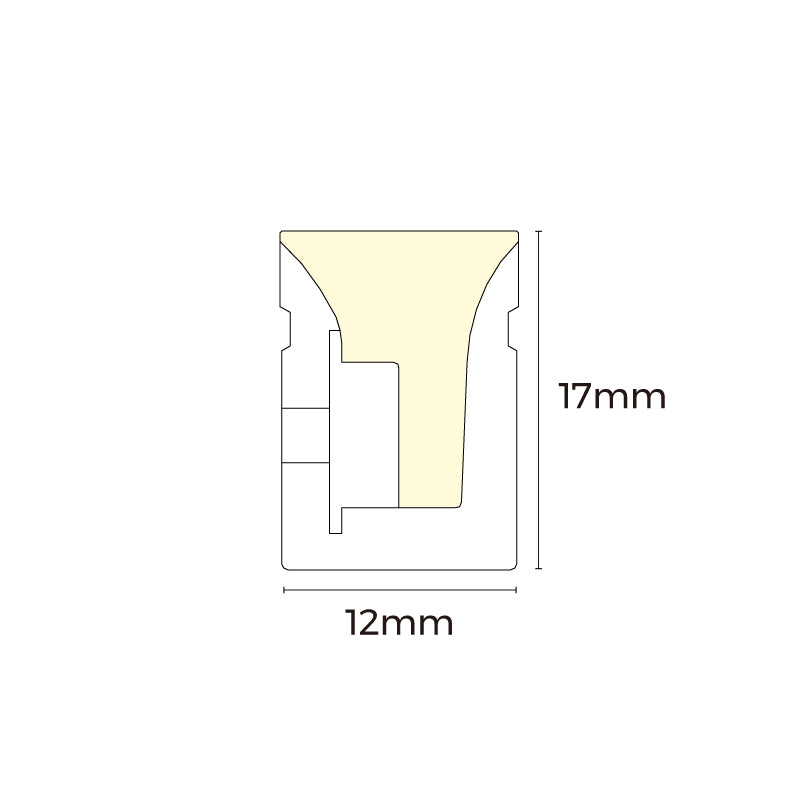

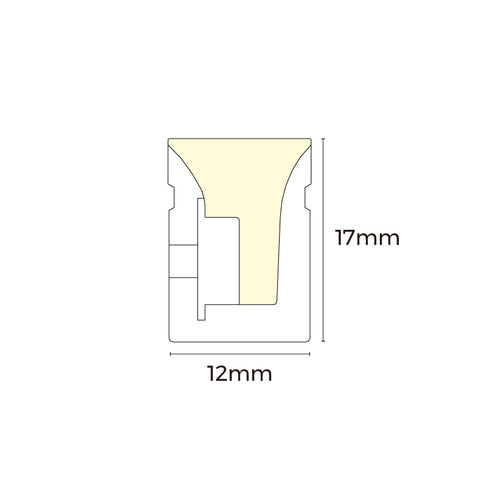

Input Current: 0.5A Dimensions: 12mm (W) x 17mm (H)
Colour Temperature: RGBW / 4000K Lumen Output @ 4000K: 125lm/m
Beam Angle: 120° LED Quantity: 336 LEDs/m
Minimum Cut: 7.4 LEDs/ 83.33mm Maximum Bend Radius: 60mm
Bend Type: Side Bend Standard Connector: Factory Fitted - Single ENP (IP67) - Hydraulic End Cap Cable Entry - Right / 02
Wire Length: 2 Metres (Silicone) Factory Fitted Packing Length: 5 Metres (Max Run Length)
IP Rating: IP67 IK Rating: IK08
SDCM Rating: < 5 Operating Temperature: 0℃ ~ 40℃
Warranty: 5 Years



Options

LED Length Options

Customizable Lengths


Colour Temperature Options

RGBW / 2700K
RGBW / 6500K


Connector Wire Options

25cm
50cm
Customizable Lengths


Control Options

Casambi Control / CAS
PWM Control / PWM
SPI Control / SPI
DMX Control / DMX


IES Files

IES files available on request

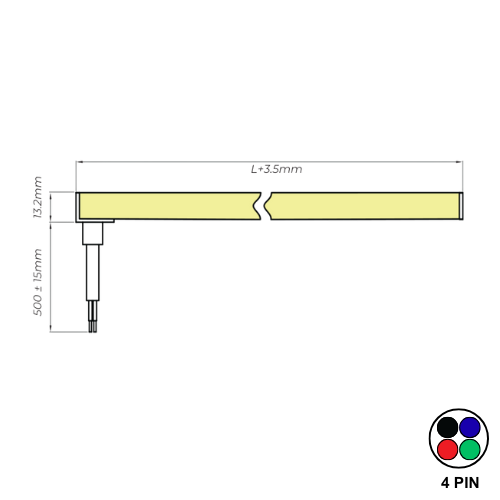

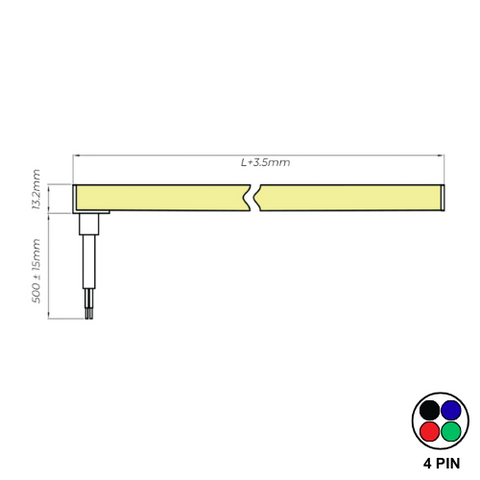

Cable Entry Options

Single Cable Entry - Right Side / 02
OmniBend Series strip light cable entries – high-quality wiring solutions for flexible side-bend neon LED strip applications
Single Cable Entry - Top / 04
OmniBend Series strip light cable entries – high-quality wiring solutions for flexible side-bend neon LED strip applications
Dual Cable Entry - Top / 05
Dual Cable Entry - Right Side / 08



Accessories

Mounting Options

Neon Mounting Clip With Reserved Wire Outlet Aluminium - 25mm - Side Bend. Recommend - 3PCS per metre OBAAS-NMS1217A1-25
Neon Mounting Rail With Reserved Wire Outlet Aluminium - 1000mm - Side Bend OBAAS-NMS1217A1-1000
Neon Mounting Clip Aluminium - 25mm - Side Bend. Recommend - 3PCS per metre OBASS-NMS1217A-25
Neon Mounting Rail Aluminium - 1000mm - Side Bend OBAAS-NMS1217A-1000
Neon Mounting Clip PC Transparent - 25mm - Side Bend. Recommend - 3PCS per metre OBAAS-NMS1217P-25
Neon Mounting Rail PC Transparent - 1000mm - Side Bend OBASS-NMS1217P-1000
Neon Mounting Rail Flexible - 500mm - 2PCE/SET - White - Side Bend. Recommend - 2PCS per metre (can not be used light side down) OBASS-NMS1217M1-500



Connector Options

Neon Quick Connector Solder free plug - IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only OBASS-NMS1217TX0-FL
Neon Quick Connector without cable - IP65 - Solder Free - Side Bend. Note - Suitable for Monochrome (Single Color) only OBAAS- NMS1217MX0-FL
Neon Quick Connector 300mm Cable, Solder Free - IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only OBAAS- NMS1217MH0-FL
Neon DC cable kit top entry 0.5m - IP65 - Solder free plug - Side Bend. Note - Suitable for Monochrome (Single Color) only OBASS-NMS1217HT0-FL
Neon cable End side right 500mm Solder Free - IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only OBAAS- NMS1217HR0-FL
Neon cable end side left 500mm Solder Free - IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only OBAAS- NMS1217HL0-FL
Neon cable end bottom 500mm Solder Free, IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only OBAAS- NMS1217HB0-FL
Neon Silicone End Cap Top Entry IP65 - Side Bend OBAAS- NMS1217GH0-EC
Neon Silicone End Cap Side Entry Solder Free IP65 - Side Bend OBAAS- NMS1217GS0-EC

Neon Silicone End Cap Bottom Entry IP65 - Side Bend OBAAS- NMS1217GD0-EC



Models

Model Option Stock Code Availability
RGBW/4K Neon Side Bend 12W/M Side Right EC 5M Roll OBN5S12RGBW4K1217/02 Stock Item
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.
