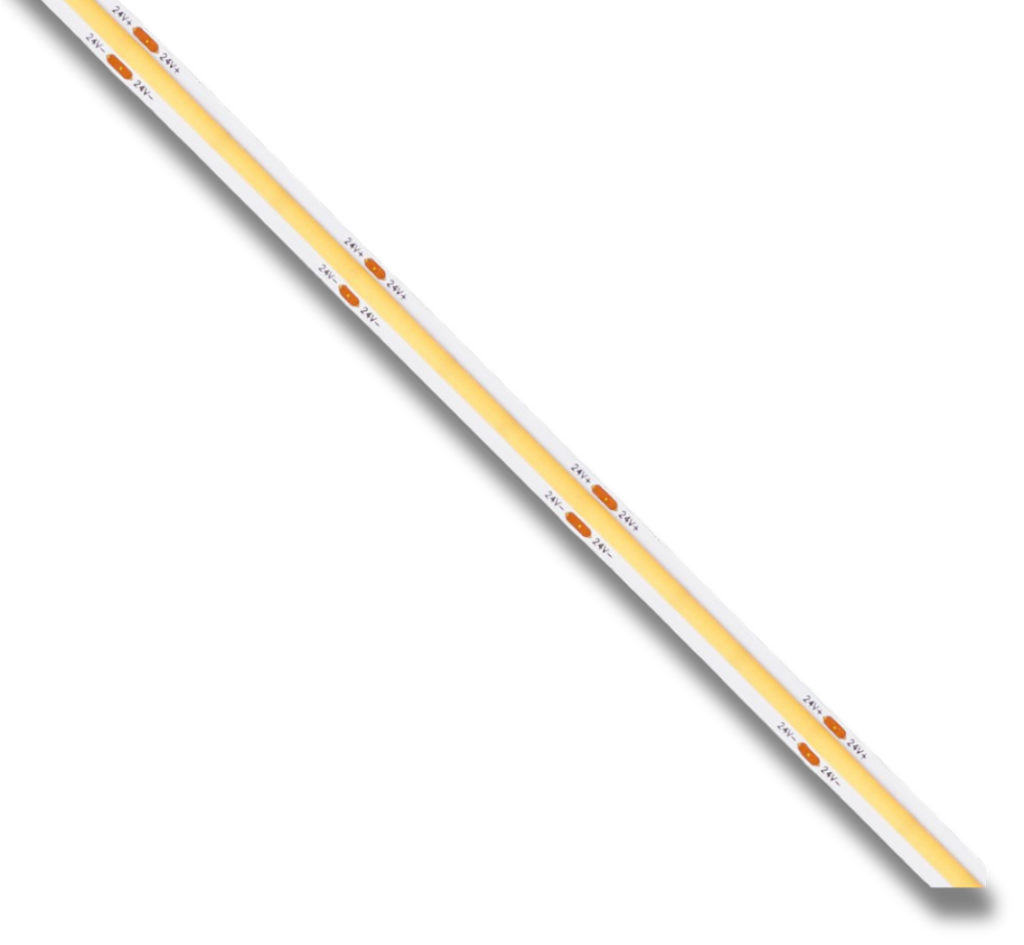

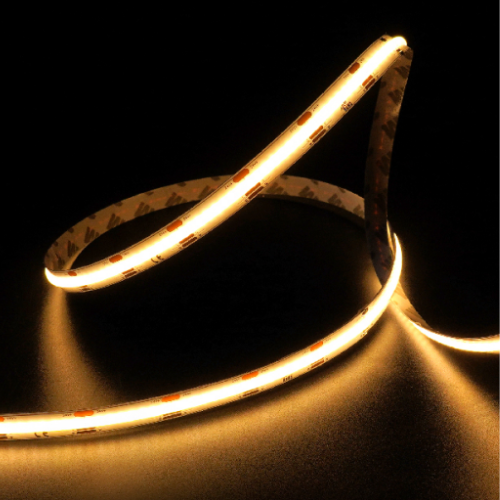

The OmniBend LED Striplight delivers seamless, dot-free illumination designed for commercial and architectural spaces. Engineered for efficiency, durability, and versatility, this strip offers a 60,000+ hour lifespan, flexible installation with 50mm cutting intervals, and IP65 ratings to suit both indoor and protected outdoor applications, it’s the perfect choice for dynamic lighting designs. From retail and hospitality to signage, offices, and event spaces, the OmniBend StripLight is the luminaire that does it all with consistent, brilliant performance.
Features
- Seamless, dot-free light output
- Uniform & smooth Illumination for continuous lines
- Flexible COB design for creative & compact installs
- Consistent quality with reel-to-reel manufacturing
- Low voltage 24Vdc
- Precise cutting every 50mm for custom lengths
- Ultra-wide 145° beam angle coverage
- Over 10,000 on-off cycles
- Durable 2oz copper PCB
- IP65 Rated
- Easy installation with 3M adhesive backing
- Supplied in standard 5m lengths
Applications
- Architectural
- Exterior & Interior Decorative Lighting
- Façade Lighting
- Artworks
- Cove Lighting
- Feature Lighting
Standard Specifications
| Rated Power: 9.6W/M (10.5W/M Max) | Input Voltage: 24V |

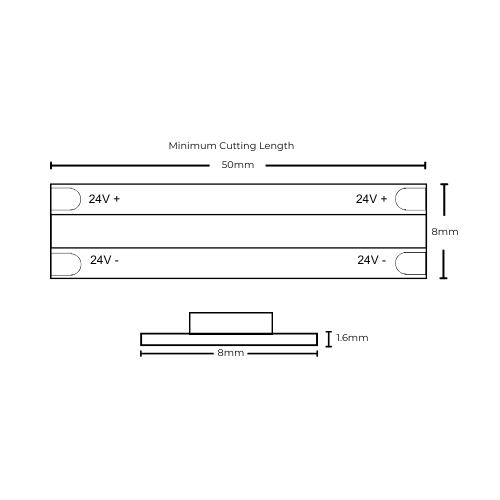

| Input Current: 0.4A | Dimensions: 8mm (W) x 1.6mm (H) |
| Colour Temperature: 3000K / 4000K | Lumen Output @ 3000K: 705lm/m |
| Lumen Output @ 4000K: 735lm/m | Beam Angle: 120° |
| LED Quantity: 480 LEDs/m | Minimum Cut: 50mm |

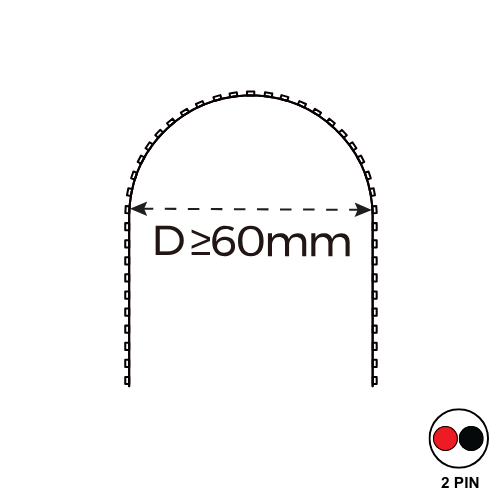

| Minimum Bend Diameter: Ø60mm | Standard Connector: Factory Fitted Single Cable Entry |
| Wire Length: 2 Metres (Parallel) Factory Fitted | Packing Length: 5 Metres |
| Maximum Run Length: 10 Metres | CRI Rating: CRI>90 |
| IP Rating: IP20 | Operating Temperature: 0℃ ~ 40℃ |
| Warranty for Indoor Use: 5 Years |
Options
LED Length Options
| 10 Metre Roll |
| Customizable Lengths |
Colour Temperature Options
| 2700K |
| 6500K |
Connector Wire Options
| 12cm |
| 20cm |
| 25cm |
| 50cm |
| 100cm |
| 200cm |
| Customizable Lengths |
Control Options
| 0-10V Dimming | / 0-10V |
| Mains Dimming | / Mains |
| DALI Dimming | / DALI |
| Casambi Control | / CAS |
IES Files
| IES OBS5T103K8/01 3000K |
| IES OBS5T104K8/01 4000K |
Cable Entry Options
|
Single Cable Entry
|
 |
|
Dual Cable Entry
|
 |
Accessories
 |
LED Strip Fast Solderfree Connector Straight 8mm - 2 Pin | OBACBB208-DFTA |
 |
LED Strip Fast Solderfree Connector Cable to Strip 8mm - 2 Pin | OBACXB208-DFTA |
 |
LED Strip Fast Solderfree Connector Right Angle 8mm - 2 Pin | OBACBBL208-DFTA |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| 3K LED Strip 9.6W/M 2M Cable IP65 8mm 5M Roll | OBS5T103K8/01 | Stock Item |
| 4K LED Strip 9.6W/M 2M Cable IP65 8mm 5M Roll | OBS5T104K8/01 | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
