The OmniBend RGBW LED Striplight delivers a smooth, shadow-free, colour rich illumination designed for commercial and architectural spaces. Engineered for efficiency, durability, and versatility, this strip offers a wide illumination beam angle, flexible installation with 100mm cutting intervals, and an IP67 rating for seamless animations, vibrant colour transitions, and precise lighting effects to suit both indoor and protected outdoor applications. From retail and hospitality to signage, offices, and event spaces, the OmniBend RGBW StripLight is the luminaire that does it all with consistent, brilliant performance
Features
- Solid silicone coating

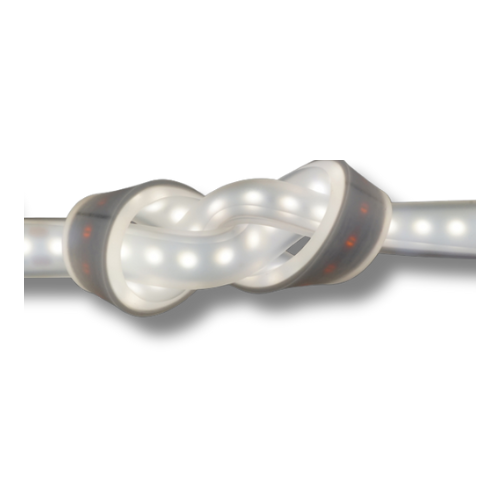

- Durable against bending, twisting & tensile forces
- Seamless colour changing technology
- Anti-glare, anti-dust & easy to clean
- Low power consumption design
- Flexible cutting every 100mm for custom lengths
- Wide illumination beam angle
- Dynamic RGBW colour blending
- Slim 12mm PCB design with 2oz copper foil
- Quick installation with 3M adhesive backing
- Outdoor EF IP67 protection
- Over 10,000 on-off cycles
- Flexible design
- Supplied in standard 5m lengths
Applications
- Architectural
- Exterior & Interior Decorative Lighting
- Façade Lighting
- Artworks
- Cove Lighting
- Feature Lighting
- Signage
Standard Specifications
| Rated Power: 16.8W/M (18.5W/M Max) | Input Voltage: 24Vdc |
| Input Current: 0.7A | Dimensions: 14mm (W) x 4.8mm (H) |
| Colour Temperature: RGBW / 4000K | Lumen Output @ 4000K: 680lm/m |
| Beam Angle: 120° | LED Quantity: 280 LEDs/m |

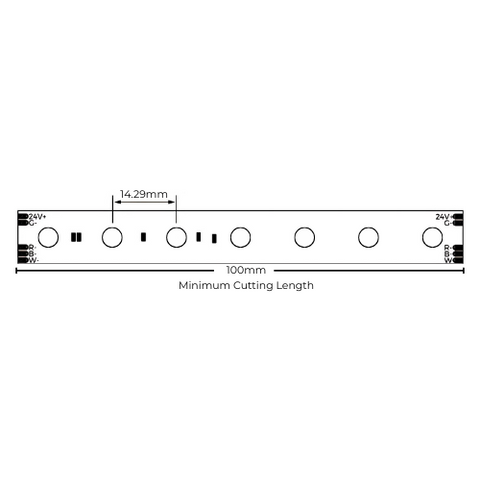

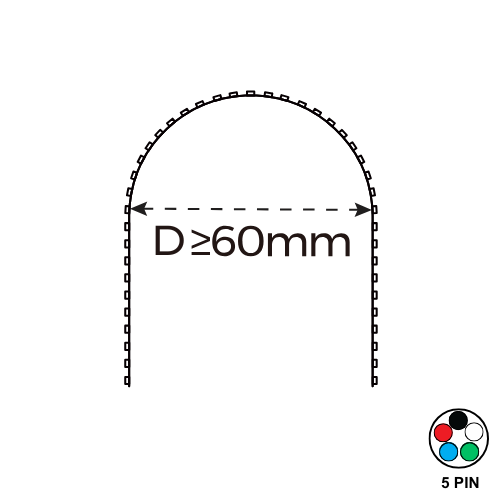

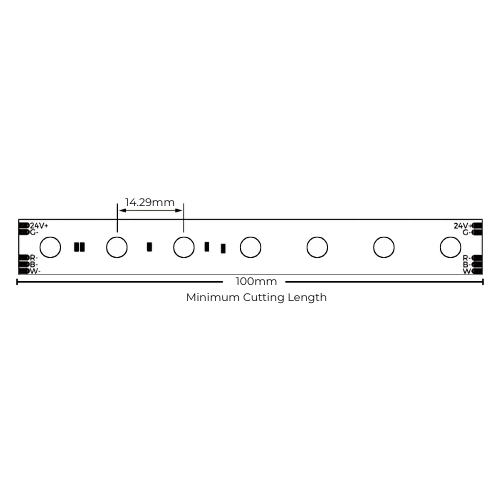

| Minimum Cut: 100mm | Minimum Bend Diameter: Ø60mm |
| Standard Connector: Factory Fitted - Single Molded EF (IP67) Solid Silicone Extrusion EF Cable Entry | Wire Length: 2 Metres (Silicone) Molded End Cap Factory Fitted |
| Packing Length: 5 Metres (Max Run Length) | IP Rating: IP67 |
| SDCM Rating: < 5 | Operating Temperature: 0℃ ~ 40℃ |
| Warranty: 5 Years |
Options
LED Length Options
| 10 Metre Roll |
| Customizable Lengths |
Colour Temperature Options
| RGBW / 2700K |
| RGBW / 6500K |
Connector Wire Options
| 12cm |
| 20cm |
| 25cm |
| 50cm |
| 100cm |
| 200cm |
| Customizable Lengths |
Control Options
| Casambi Control | / CAS |
| PWM Control | / PWM |
| SPI Control | / SPI |
| DMX Control | / DMX |
IES Files
| IES file available on request |
Cable Entry Options
|
Single Cable Entry
|
 |
|
Dual Cable Entry
|
 |
Accessories
 |
LED Strip Fast Connector Straight 10mm - 4 Pin | OBACBB410-NOTA |
 |
LED Fast Connector Cable to Strip 10mm - 4 Pin | OBACXB410-NOTA |
 |
Silicone Plug Kit - 8mm | OBADT08EA-A |
 |
Silicone Plug Set - 8mm | OBADW08EA-A |
 |
Silicone Plug Kit - 10mm | OBADT10EA-A |
 |
Silicone Plug Set - 10mm | OBADW10EA-A |
 |
Silicone Clip - 10mm | OBAFSW10SA |
 |
Silicone Gel Glue - LED Strip | OBAAS-PG-003 |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| RGBW+4K LED Strip 16.8W/M EF IP67 C/W 2M Cable 5M Roll | OBS5T16RGBW4K10/02EF | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
