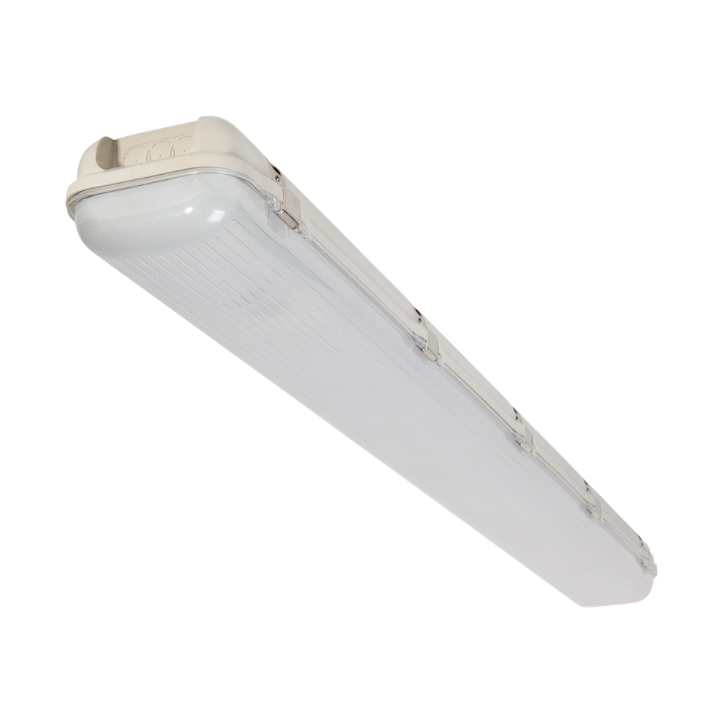

The WP Series LED Battens offer a high quality and easy install external fitting range. The wide light distribution and colour temperature switch allows you to easily match existing lights. This batten is the ideal replacement for surface mounted fluorescent fittings and new fitouts. This robust IP65 luminaire is built for outdoor commercial applications including parks, schools and council facilities.
Features
- SMD LED technology
- Robust construction
- Stainless steel mounting clips
- Flicker free driver
- Locking screws
- Ceiling or wall mountable
- Power selectable output options
- Tri-colour option
- Motion sensor option (DIP switch controls)
- Emergency option
- Replaces 2x36W fluoro
Applications
- Council Facilities
- Parks
- Schools
- Exterior Walls / Ceilings
- Commercial Buildings
- Car Parks
Standard Specifications
| Input Voltage: 100 - 240Vac | Rated Input Power: 40W (40W / 32W / 24W / 20W) |
| Lumen Output: 4000lm | Colour Temperature: 3000K/4000K/5000K/ 3CCT |
| Beam Angle: 120° | CRI Rating: CRI>80 (* CRI> 85 / GS) |
| SDCM Rating: <6 (* SDCM <3 / GS) | IP Rating: IP65 |
| IK Rating: IK08 | Operating Temperature: -20°C ~ 45°C |
| Dimensions: 1215 116 74mm | Fitting Weight: 1.95 kgs |
Option List
| DALI Dimming | / DALI |
| Greenstar Specification* | / GS |
| Motion Sensor | / MS |
IES Files
| IES WP40GR4KN01 40W |
Photometric Chart
 |
Models
Models
| Model Option | Availability | |
|---|---|---|
Grey / 3000K Stock Code: WP40GR3KN01 |
Special Order | |
Grey / 4000K Stock Code: WP40GR4KN01 |
Special Order | |
Grey / 5000K Stock Code: WP40GR5KN01 |
Special Order | |
Grey / 3CCT Stock Code: WP40GRXKN01 |
Stock Item | |
Grey / 3CCT / Power Selectable Stock Code: WP40GRXKN01 / PS |
Special Order | |
Grey / 3CCT / Emergency Stock Code: WPE40GRXKN01 |
Stock Item | |
Grey / 3CCT / Motion Sensor Stock Code: WP40GRXKN01 / MS |
Stock Item | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
