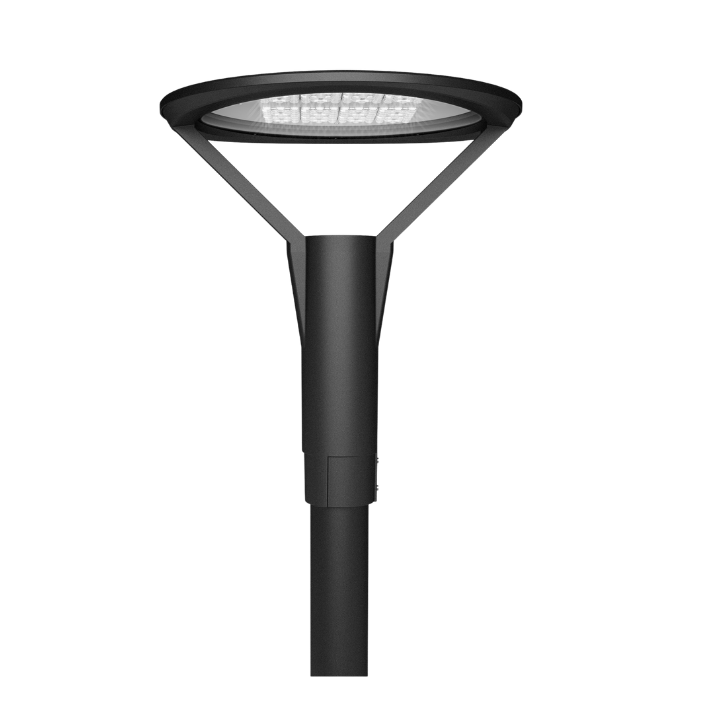

PT4 Series LED Poletop Lights - 60W

  • Sale
  • Regular price


The PT Series LED poletops package the latest LED chipsets and drivers in an expanding range of heritage and contemporary designs. The PT4 is the latest edition to our PT Series, offering a smooth architectural design. With symmetric and asymmetric optics, it makes the PT4 poletop highly adaptable to projects where widespread and controlled lighting is required. This results in more efficient lighting,  better glare control and reduced spill lighting.

Features

  • Asymmetric & symmetric optics choices
  • High Output Seoul LED Chips
  • High Specification Sosen Driver
  • 76mm spigot adaptor (60mm spigot adaptor available)
  • Durable powdercoated finish
  • Robust cast aluminium construction
  • Dimming and smart lighting control options



Applications

  • Parks
  • Walkways
  • Education Campus'
  • Council Facilities
  • Courtyards
  • Estates


Standard Specifications

Rated Input Power: 60W Lumen Output: 7,200lm
Colour Temp: 4000K (3000K, 5000K optional) CRI Rating: CRI>80
Operating Temperature: -30/+45°C Service Life: L90B10>52,000hrs
Ingress Protection: IP66 IK Rating: IK09
Fitting Weight: 7.1kg



Options (add option to end of stock code)

0-10V Dimming /0-10V
DALI Dimming /DALI


Accessories

Spigot Adaptor - 60mm PT4ADP60



IES Files

IES PT460BK5KN01 60W
IES PT460BK5KN02 60W
IES PT460BK5KN03 60W



Models

Model Option Stock Code Availability
Black / 3000K / Type V Symmetric PT460BK3KN01 Special Order
Black / 3000K / Type IV Asymmetric PT460BK3KN02 Special Order
Black / 3000K / Type III Asymmetric PT460BK3KN03 Special Order
Black / 4000K / Type V Symmetric PT460BK4KN01 Special Order
Black / 4000K / Type IV Asymmetric PT460BK4KN02 Special Order
Black / 4000K / Type III Asymmetric PT460BK4KN03 Special Order
Black / 5000K / Type V Symmetric PT460BK5KN01 Special Order
Black / 5000K / Type IV Asymmetric PT460BK5KN02 Special Order
Black / 5000K / Type III Asymmetric PT460BK5KN03 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
