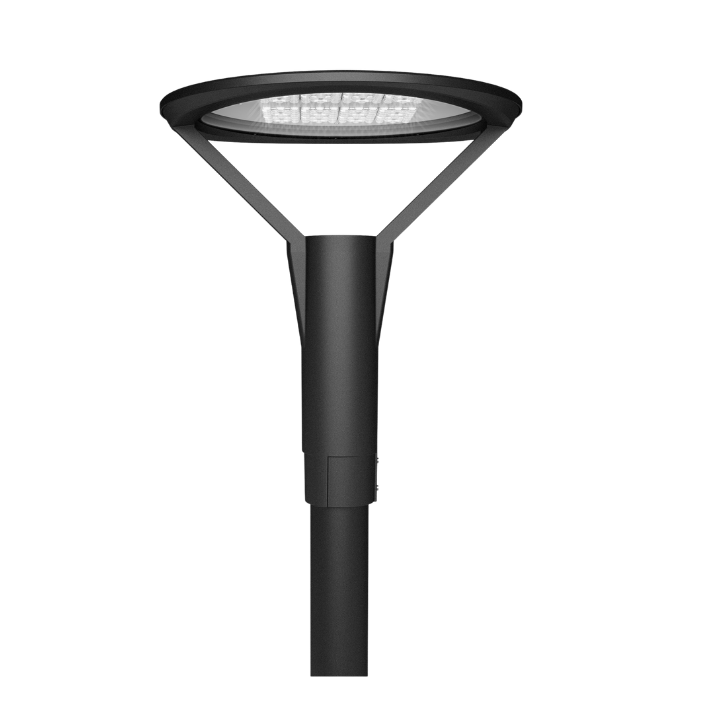

PT4 Series LED Poletop Lights - 40W

  • Sale
  • Regular price


The PT Series LED poletops package the latest LED chipsets and drivers in an expanding range of heritage and contemporary designs. The PT4 is the latest edition to our PT Series, offering a smooth architectural design. With symmetric and asymmetric optics, it makes the PT4 poletop highly adaptable to projects where widespread and controlled lighting is required. This results in more efficient lighting, better glare control and reduced spill lighting.


Features

  • Asymmetric & symmetric optics choices
  • High output Seoul LED chips
  • High specification Sosen driver

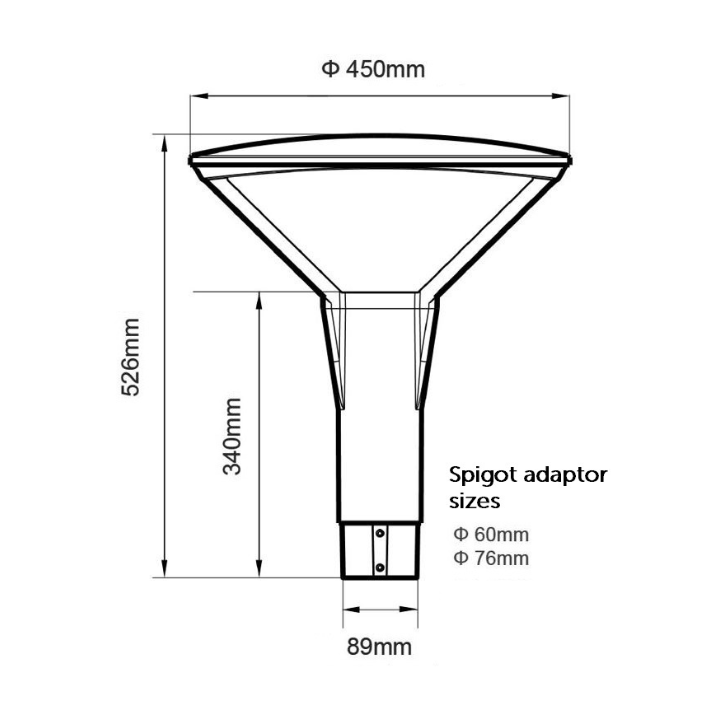

  • 76mm spigot adaptor (60mm spigot adaptor available)
  • Durable powdercoated finish
  • Robust cast aluminium construction
  • 0-10V dimming
  • Fitted with 6m, 5 core cable
  • Smart lighting control options



Applications

  • Parks
  • Walkways
  • Education Campus'
  • Council Facilities
  • Courtyards
  • Estates



Standard Specifications

Rated Input Power: 40W Lumen Output: 4,800lm
Colour Temp: 4000K (3000K, 5000K optional) CRI Rating: CRI>80
Operating Temperature: -30/+45°C Service Life: L90B10>52,000hrs
Ingress Protection: IP66 IK Rating: IK09
Fitting Weight: 7.1kg



Options (add option to end of stock code)

DALI Dimming /DALI


Accessories

Spigot Adaptor - 60mm PT4ADP60


IES Files

IES PT440BK5KN01 40W
IES PT440BK5KN02 40W
IES PT440BK5KN03 40W



Models

Model Option Stock Code Availability
Black / 3000K / Type V Symmetric PT440BK3KD01 Special Order
Black / 3000K / Type IV Asymmetric PT440BK3KD02 Special Order
Black / 3000K / Type III Asymmetric PT440BK3KD03 Special Order
Black / 4000K / Type V Symmetric PT440BK4KD01 Stock Item
Black / 4000K / Type IV Asymmetric PT440BK4KD02 Special Order
Black / 4000K / Type III Asymmetric PT440BK4KD03 Special Order
Black / 5000K / Type V Symmetric PT440BK5KD01 Special Order
Black / 5000K / Type IV Asymmetric PT440BK5KD02 Special Order
Black / 5000K / Type III Asymmetric PT440BK5KD03 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
