OmniBend Neon is a high-performance, weather-resistant silicone LED strip that’s built to last and designed to shine. Engineered for both interior and exterior applications, this flexible lighting solution offers customizable options to suit a wide variety of projects. Whether you're illuminating architectural features, signage, or outdoor environments, OmniBend Neon delivers reliable performance with standout visual appeal.
Features
- Silicone IP67 Neon strip
- Ultra-high structural strength
- Super weather durability
- Suitable for harsh outdoor environments
- Long lifespan
- Anti-breakage PCB design
- Manufactured with Gas Phase Silica gel
- UV weather resistance
- Yellowing & corrosion resistance
- Silicone wire connection for IP67
- High light transmittance - Up to 90%
- Fireproof & flame retardant
- Flexible customizations options
- Supplied in standard 5m lengths
Applications
- Architectural
- Exterior & Interior Decorative Lighting
- Façade Lighting
- Landscape Lighting
- Artworks
- Cove Lighting
- Feature Lighting
- Signage
Standard Specifications
| Rated Power: 10W/M (11W/M Max) | Input Voltage: 24V |

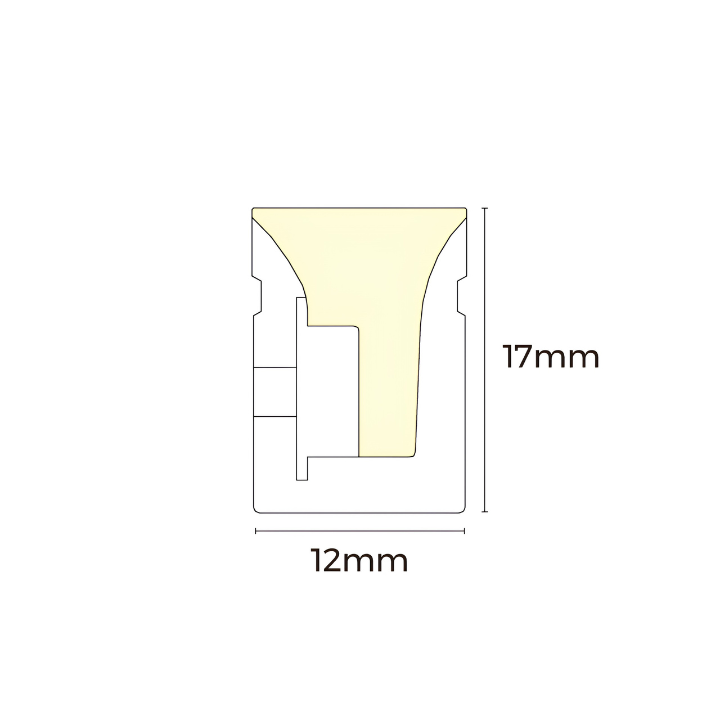

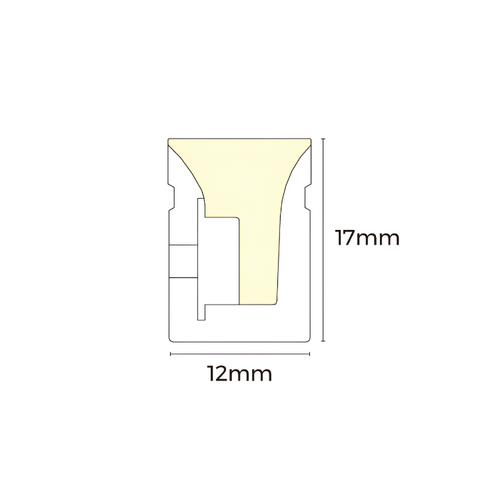

| Input Current: 0.4A | Dimensions: 12mm (W) x 17mm (H) |
| Colour Temperature: 3000K / 4000K | Lumen Output @ 3000K: 560lm/m |
| Lumen Output @ 4000K: 650lm/m | Beam Angle: 120° |
| LED Quantity: 320 LEDs/m | Minimum Cut: 16 LEDs/ 50mm |
| Maximum Bend Radius: 60mm | Bend Type: Side Bend |
| Standard Connector: Factory Fitted - Single ENP (IP67) - Hydraulic End Cap Cable Entry - Bottom / 01 | Wire Length: 2 Metres (Silicone) Factory Fitted |
| Packing Length: 5 Metres | Maximum Run Length: 10 Metres |
| IP Rating: IP67 | IK Rating: IK08 |
| CRI Rating: CRI>90 | SDCM Rating: < 5 |
| Operating Temperature: 0℃ ~ 40℃ | Warranty: 5 Years |
IES Files
| IES OBN5S10B3K1217/01 3000K Side Bend |
| IES OBN5S10B4K1217/01 4000K Side Bend |
Cable Entry Options
| Single Cable Entry - Bottom / 01 |
 |
|
Single Cable Entry - Right Side / 02
|
 |
| Single Cable Entry - Left Side / 03 |
 |
|
Single Cable Entry - Top / 04
|
 |
| Dual Cable Entry - Top / 05 |
 |
|
Dual Cable Entry - Bottom / 06
|
 |
|
Dual Cable Entry - Left Side / 07
|
 |
|
Dual Cable Entry - Right Side / 08
|
 |
Models
| Model Option | Availability | |
|---|---|---|
3K Neon Side Bend 10W/M Bottom Connector EC 5M Roll Stock Code: OBN5S10B3K1217/01 |
Stock Item | |
4K Neon Side Bend 10W/M Bottom Connector EC 5M Roll Stock Code: OBN5S10B4K1217/01 |
Stock Item | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
Options
LED Length Options
| 10 Metre Roll |
| Customizable Lengths |
Colour Temperature Options
| 2700K |
| 6500K |
Connector Wire Options
| 25cm |
| 50cm |
| Customizable Lengths |
Control Options
| 0-10V Dimming | / 0-10V |
| Mains Dimming | / Mains |
| DALI Dimming | / DALI |
| Casambi Control | / CAS |
Accessories
Mounting Options
 |
Neon Mounting Clip With Reserved Wire Outlet Aluminium - 25mm - Side Bend. Recommend - 3PCS per metre | OBAAS-NMS1217A1-25 |
 |
Neon Mounting Rail With Reserved Wire Outlet Aluminium - 1000mm - Side Bend | OBAAS-NMS1217A1-1000 |
 |
Neon Mounting Clip Aluminium - 25mm - Side Bend. Recommend - 3PCS per metre | OBASS-NMS1217A-25 |
 |
Neon Mounting Rail Aluminium - 1000mm - Side Bend | OBAAS-NMS1217A-1000 |
 |
Neon Mounting Clip PC Transparent - 25mm - Side Bend. Recommend - 3PCS per metre | OBAAS-NMS1217P-25 |
 |
Neon Mounting Rail PC Transparent - 1000mm - Side Bend | OBASS-NMS1217P-1000 |
 |
Neon Mounting Rail Flexible - 500mm - 2PCE/SET - White - Side Bend. Recommend - 2PCS per metre (can not be used light side down) | OBASS-NMS1217M1-500 |
Connector Options
 |
Neon Quick Connector Solder free plug - IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only | OBASS-NMS1217TX0-FL |
 |
Neon Quick Connector Without Cable - IP65 - Solder Free - Side Bend. Note - Suitable for Monochrome (Single Color) only | OBAAS- NMS1217MX0-FL |
 |
Neon Quick Connector 300mm Cable, Solder Free - IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only | OBAAS- NMS1217MH0-FL |
 |
Neon DC Cable Kit Top Entry 0.5m - IP65 - Solder free plug - Side Bend. Note - Suitable for Monochrome (Single Color) only | OBASS-NMS1217HT0-FL |
 |
Neon Cable End Side Right 500mm Solder Free - IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only | OBAAS- NMS1217HR0-FL |
 |
Neon Cable End Side Left 500mm Solder Free - IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only | OBAAS- NMS1217HL0-FL |
 |
Neon Cable End Bottom 500mm Solder Free, IP65 - Side Bend. Note - Suitable for Monochrome (Single Color) only | OBAAS- NMS1217HB0-FL |
 |
Neon Silicone End Cap Top Entry IP65 - Side Bend | OBAAS- NMS1217GH0-EC |
 |
Neon Silicone End Cap Side Entry Solder Free IP65 - Side Bend | OBAAS- NMS1217GS0-EC |
|
Neon Silicone End Cap Bottom Entry IP65 - Side Bend | OBAAS- NMS1217GD0-EC |
